Motor & Gear
High-Performance JIABO 30Nm 250W Motor. 7-speed SHIMANO Gear.
Twist n Go
DVSA Approved Instant Throttle Acceleration to 15.5mph.
Battery
9.6Ah 36V Hidden Removable Superior LG Battery.

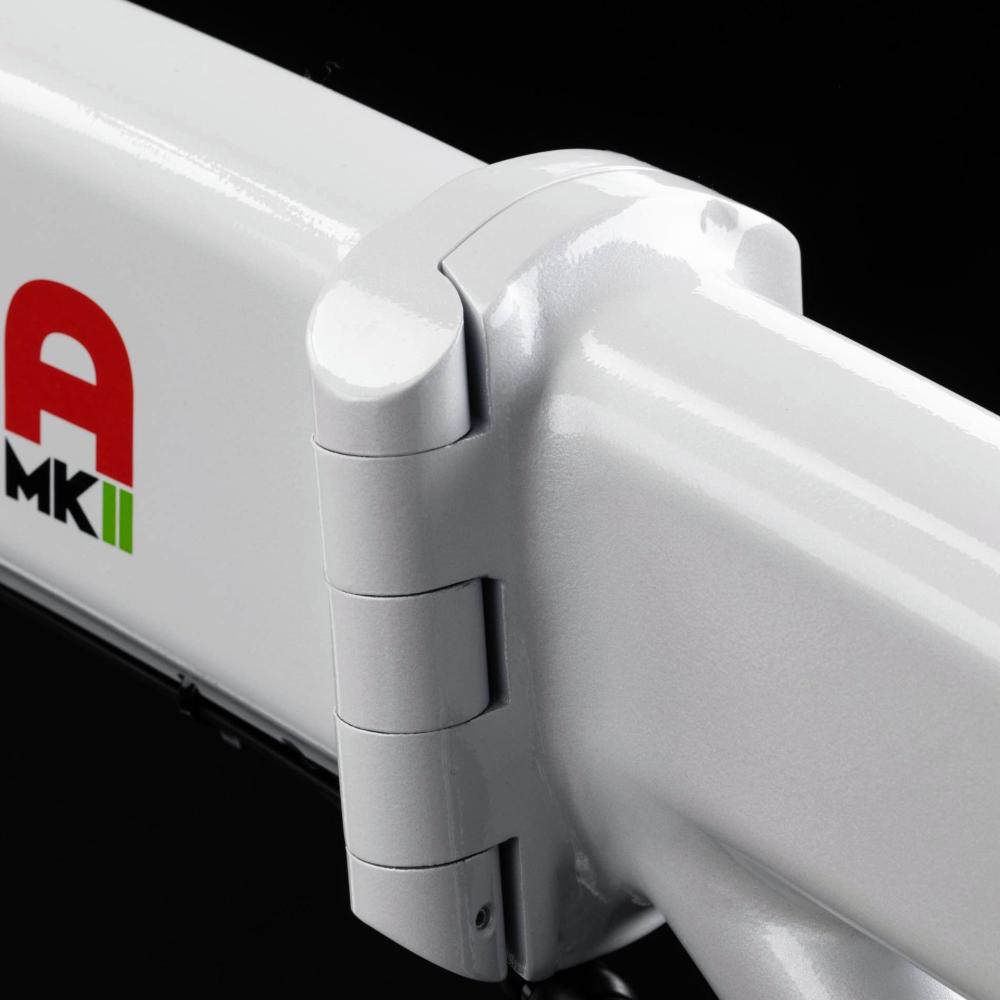

Folding
Swift Magnetic Hub to Hub Folding and locking.
Wheels & Brake
Unibody Tri-Spoke 20" Magnesium Wheels. Front/Rear TEKTRO Mechanical Disc Brake.
19Kg
Lightweight Aluminium Frame
9.6Ah
Superior LG Battery
250W
High-Performance JIABO Motor

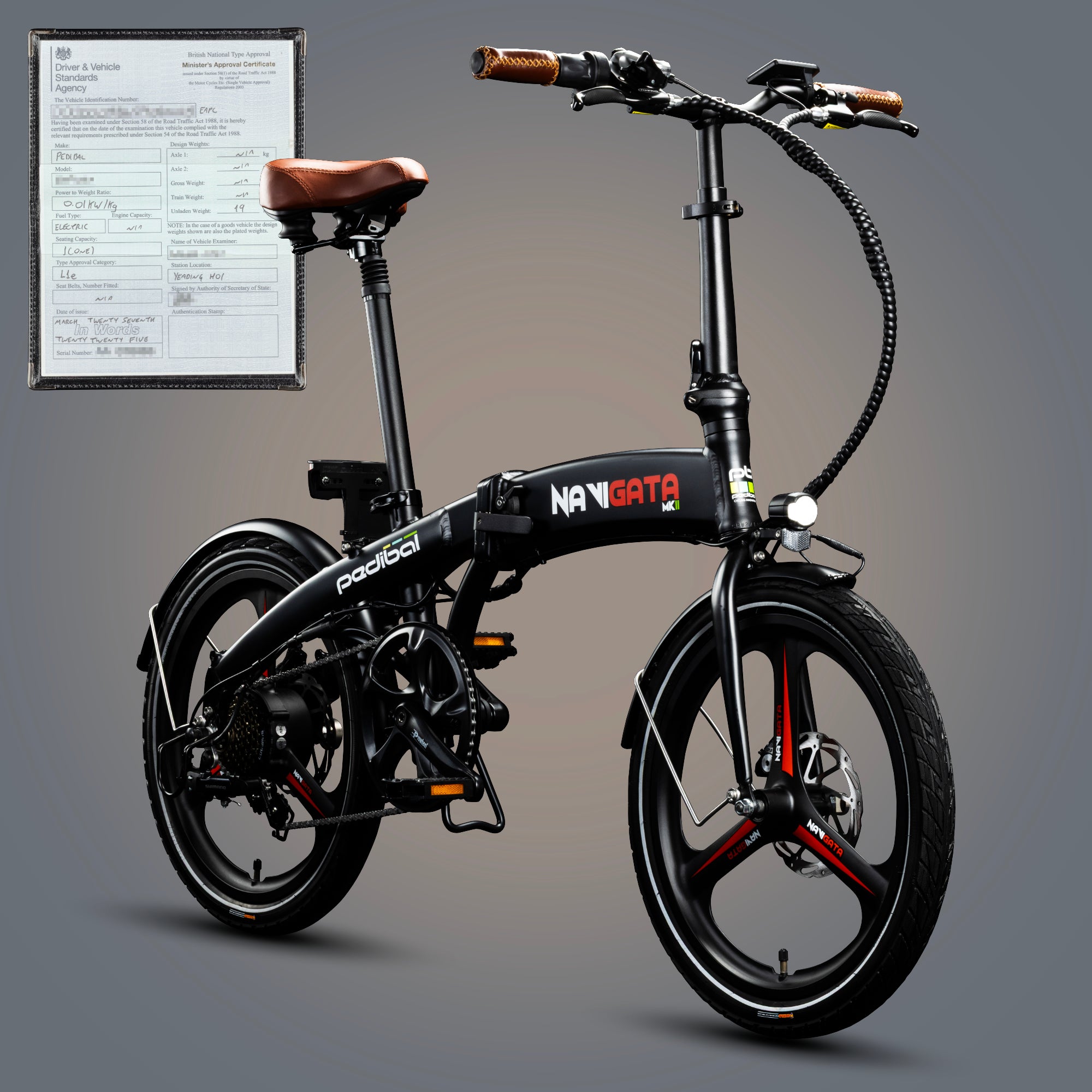

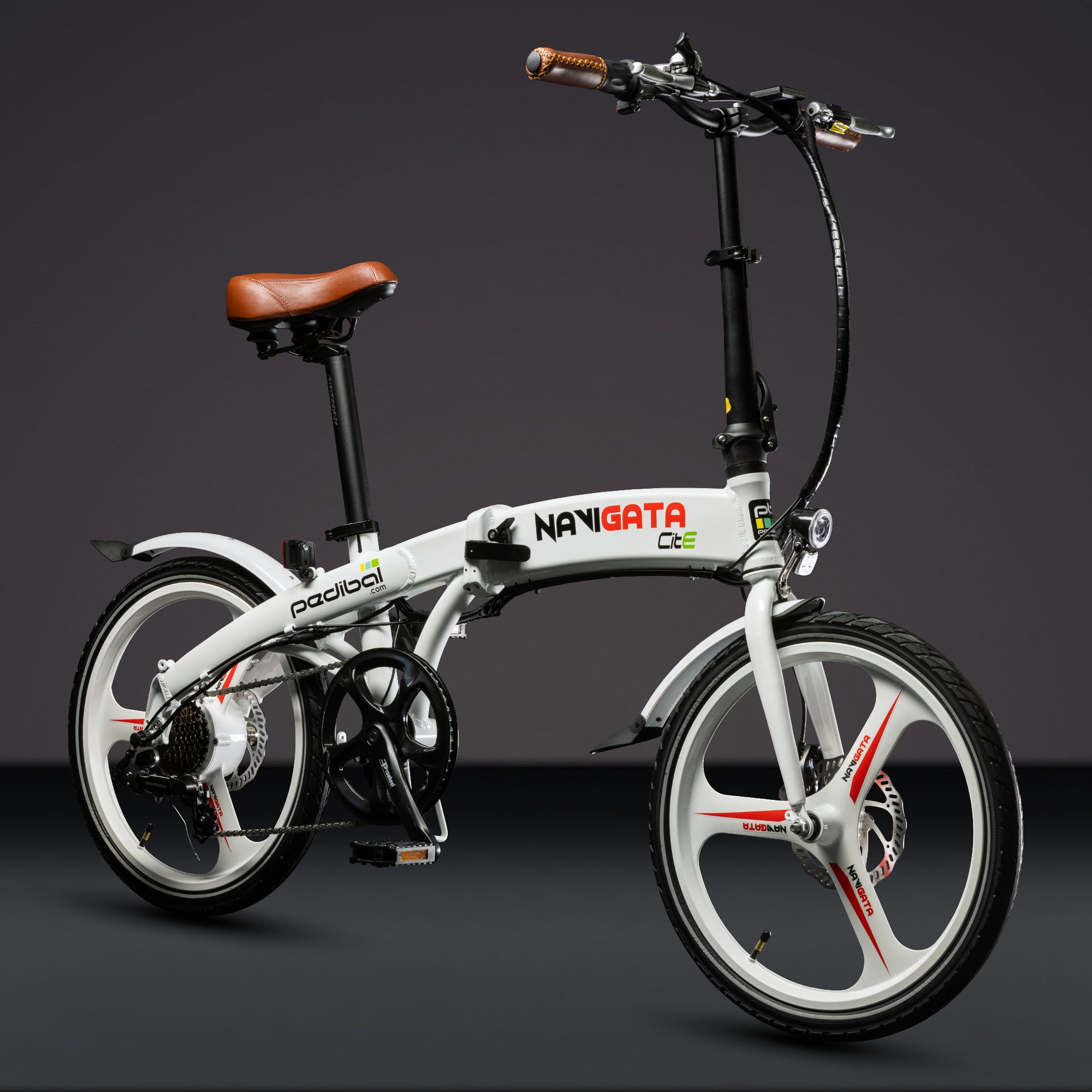

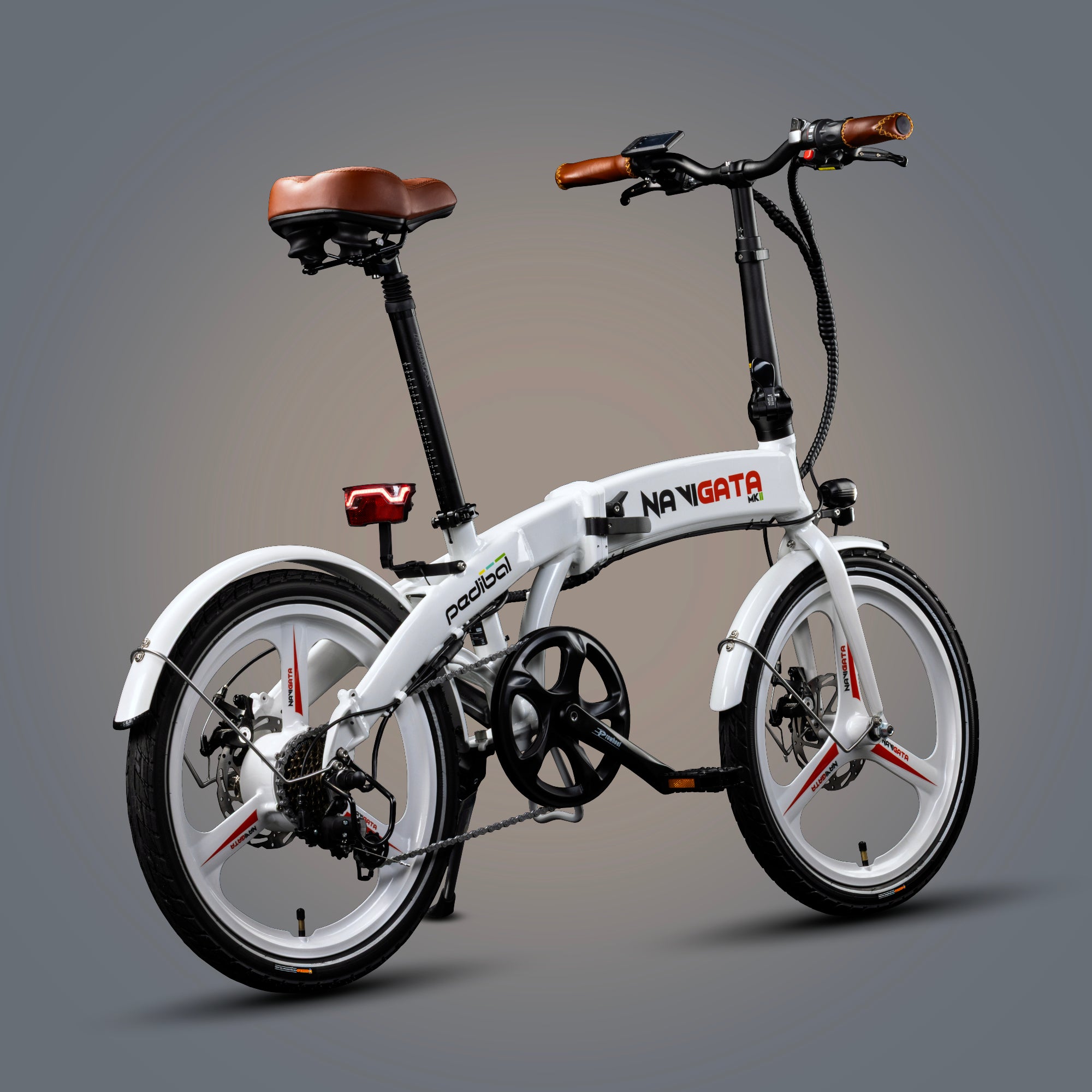

The best-value folding electric bike to hit the streets. Fast and foldable, the new Navigata from Pedibal is a smart electric bike that takes the grind out of city cycling.

Pedibal Bikes’ Navigata Cite Folding e-bike is compact and functional travel solution, Arguably a folding e-bike for most applications.

One of the top eco-friendly travel solutions, Pedibal Bikes’ Navigata Cite Folding e-bike is compact and functional, making it perfect for city living.

If looks are just as important to vou as NAVIGATA CITE a bike's other attributes (and let's be honest, we all know a cyclist like that), then the eye-catching Pedibal Navigata CiTE could be the bike for you.

Joe Mulcahy's latest bike set to take cycle markets by storm.

The Navigata is a solid all-round option for commuting, and considering its price of £999, it offers excellent value compared with other options on the market.

Toggle the Handle to Compare


15.5 mph

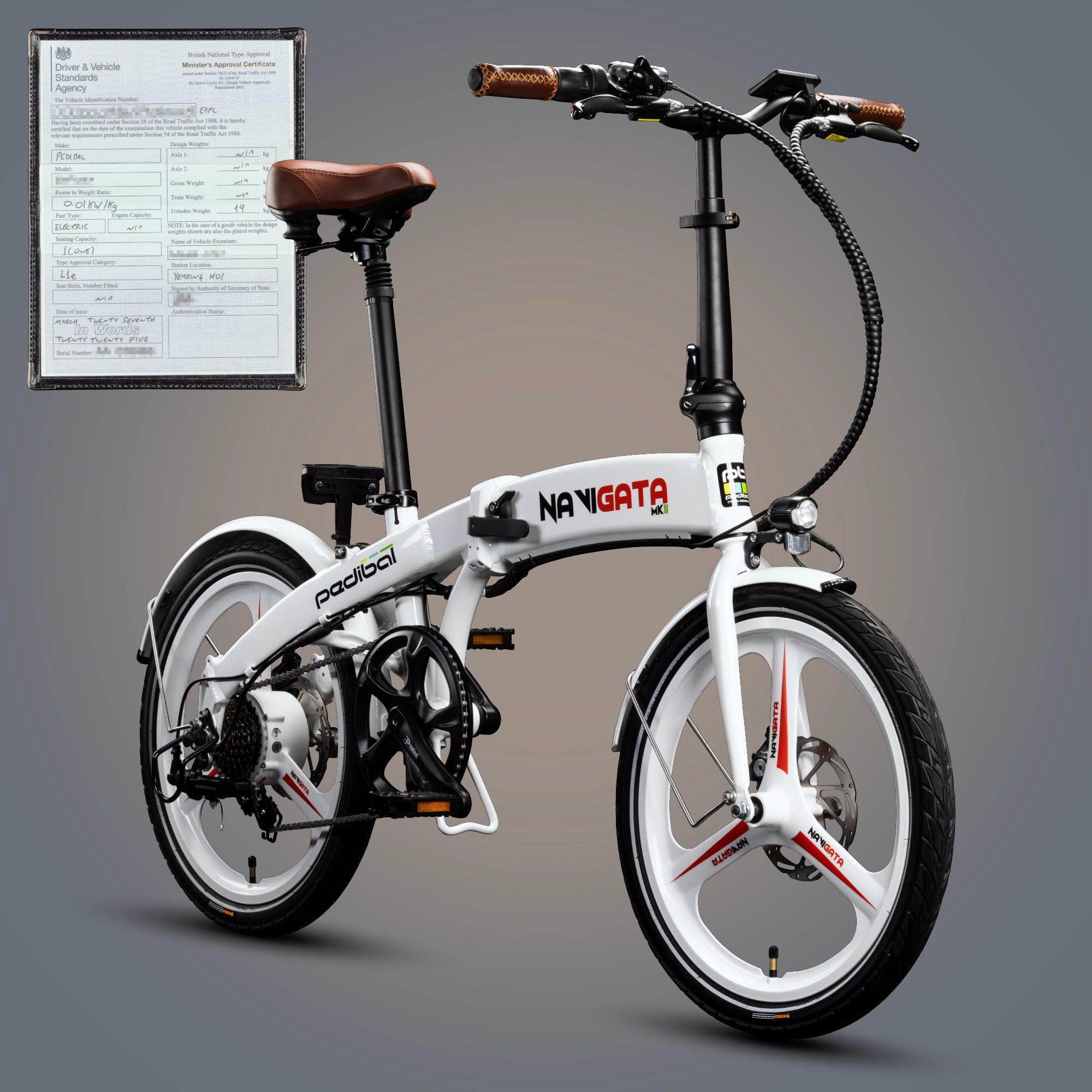

Instant throttle acceleration up to maxim 15.5mph (25km/h) for safest travel initiation. DVSA approved throttle unique to the Navigata CitE is superb for convenient travel from stationary, in stop-start commuting conditions and equally suitable for riders of all ages and abilities for instant safe riding.
Popular with motorhome, camper-van and caravan owners alike.



The powerful crossbar enclosed secure key locked battery, is protected from the elements and can be charged in situ or removed simply for charging (4 hours) the battery also includes a hidden USB socket for accessory connection and mobile charging.

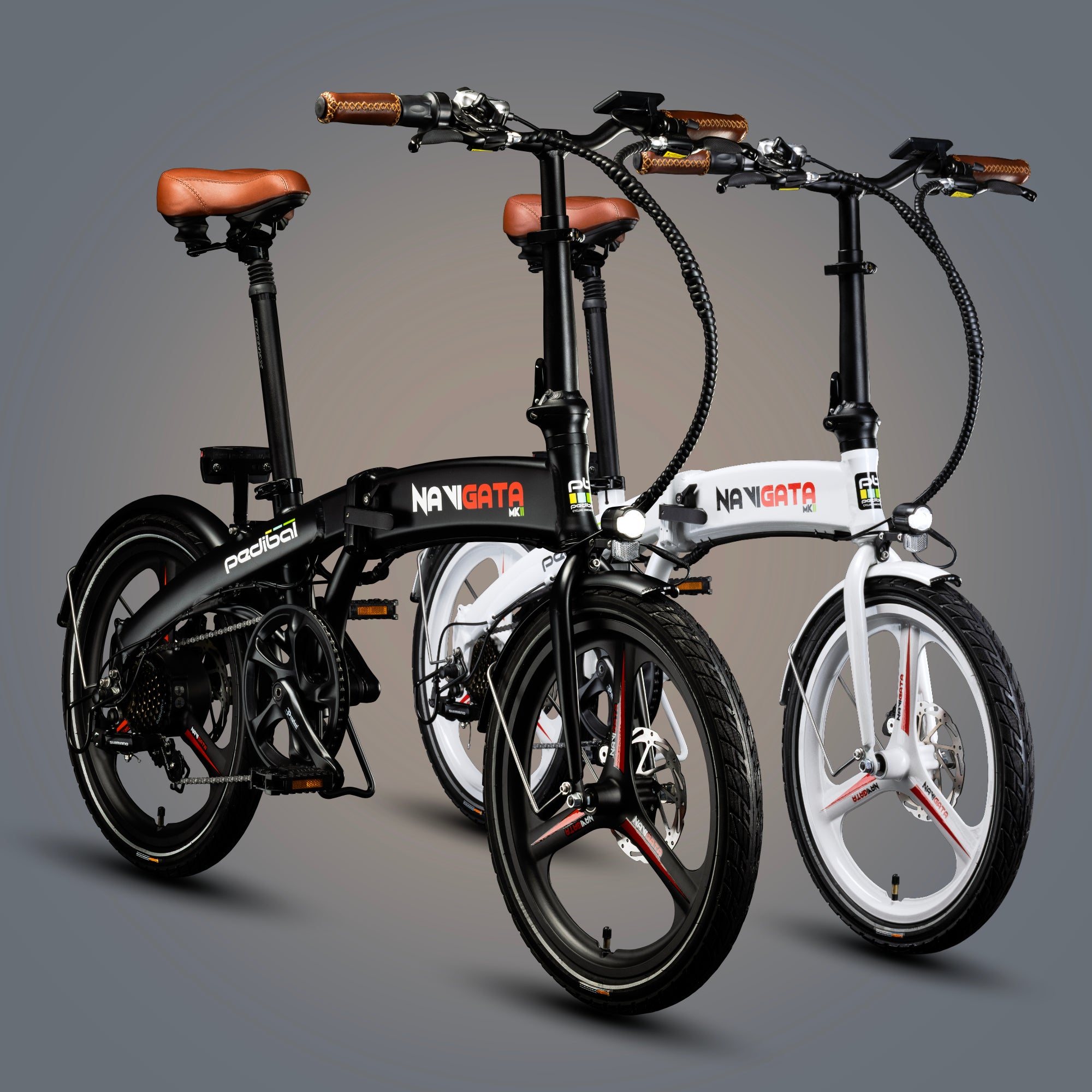

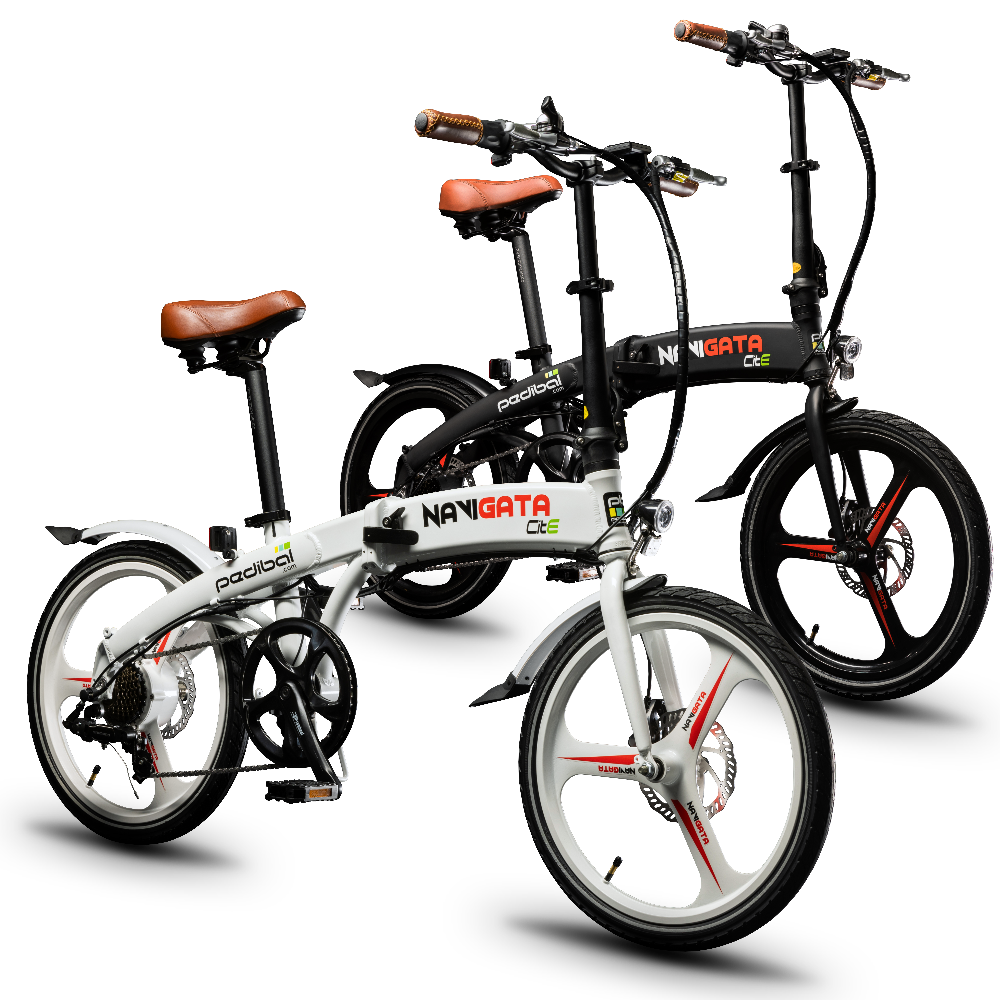

Buy NowThe Navigata CitE aesthetically pleasing design with all attributes and ride comfort offers tremendous value for money with convenience and enjoyable ride experience and environmentally supportive mode of travel. Available in classy Brilliant White or super Stealth Black.

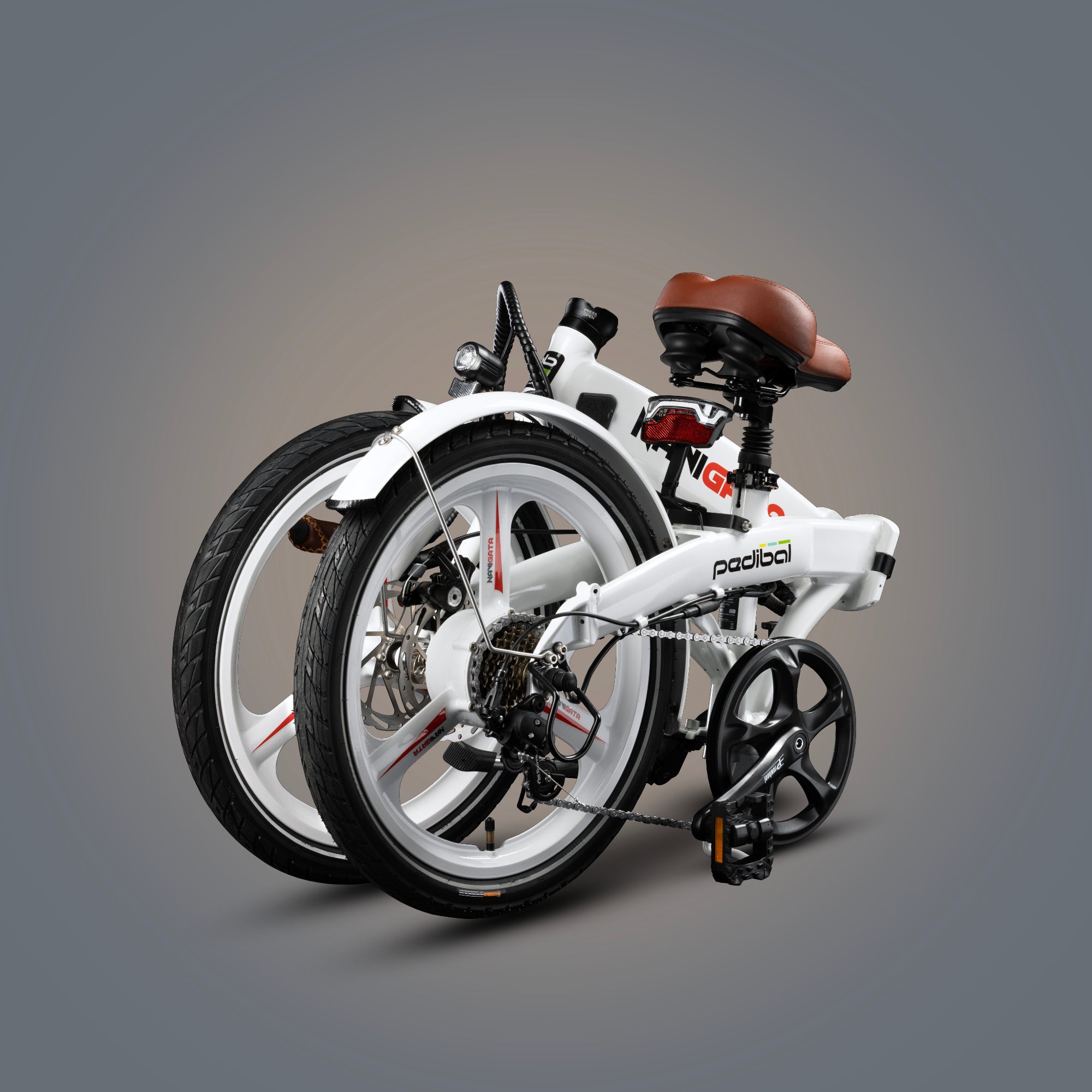

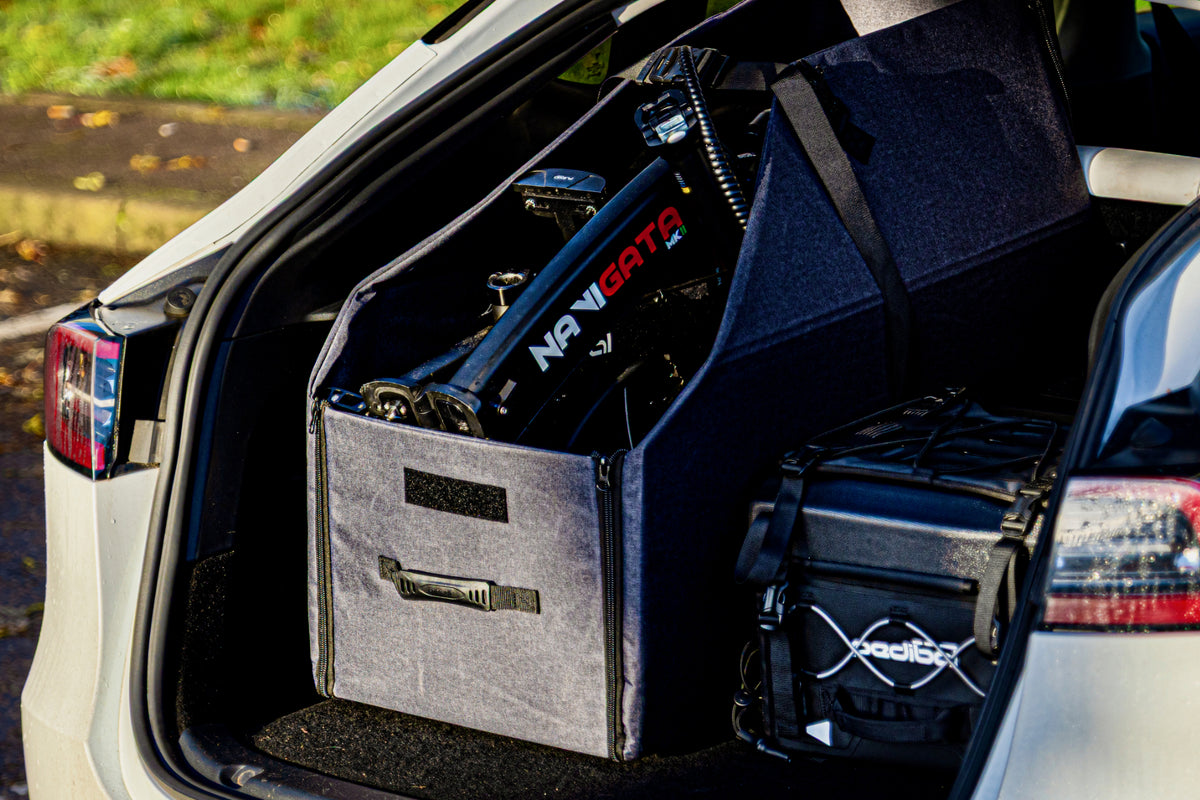

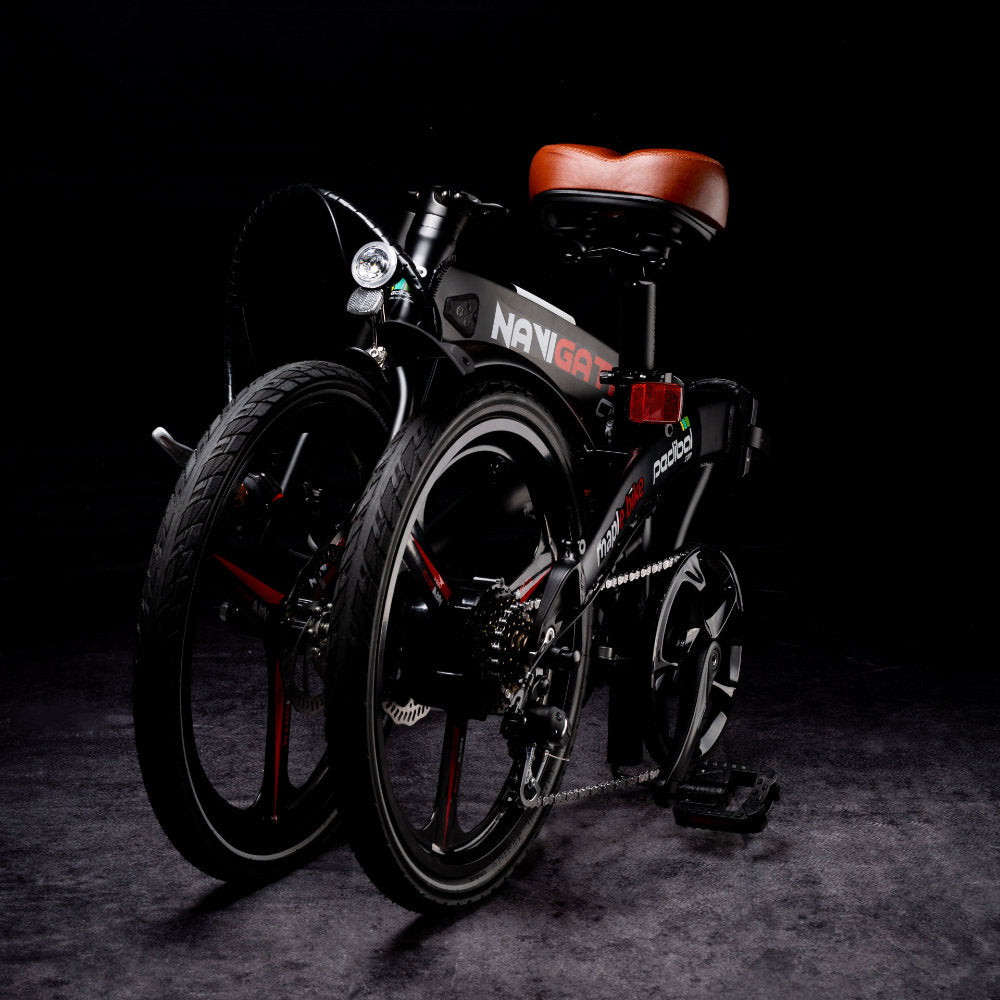

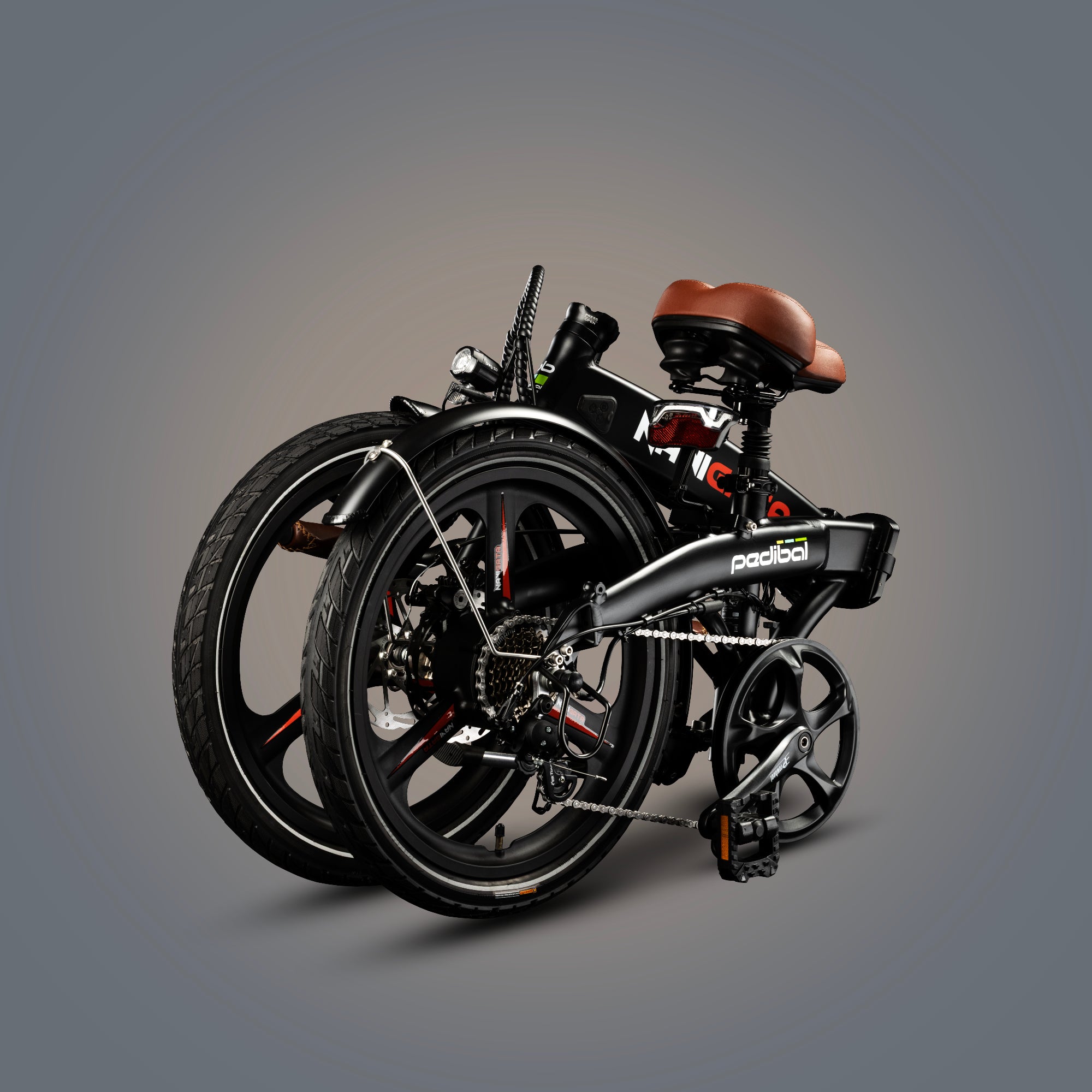

Buy NowNo carrying as the Navigata conveniently folds in seconds to an exclusive secure hub to hub magnetic lock, which facilitates easy push to office, home, public transport, with minimal storage footprint, for secure parking or charging.
Buy NowPedibal Navigata CitE
Ride & Controls.
Driven by powerful 250w motor, complimented with 36v battery for circa 41 miles (66km) travel at speeds up to 15.5 mph (25km/h) with a single charge Supported by renowned Shimano Seven Speed gears for terrain travel support. 20” Tri-Spoke Magnesium Kenzo Tyres and front light offers for rider assurance of event free travel. To compliment the instant acceleration throttle, the Navigate CitE enjoys Five Torque Levels which with pedal assist offers a riding experience without exertion. Rider safety is paramount and braking is controlled by Front and Rear disc brakes.
ExploreAluminium alloy
Hub to Hub Magnetic locking
UK DVSA Approved 15.5 mphTwist and Go
36V 250W brushless integrated rear wheel hub motor
36 volt 9.6 Ah Li-ion LG - Concealed in Frame
Pedal Assist/Twist & Go up to 40 miles (60 km)
Motor Assistance stops at 15.5 mph (25 km/h)
Intelligent brushless
5-6 Hour
USBAC 100-240V, 2A smart charger

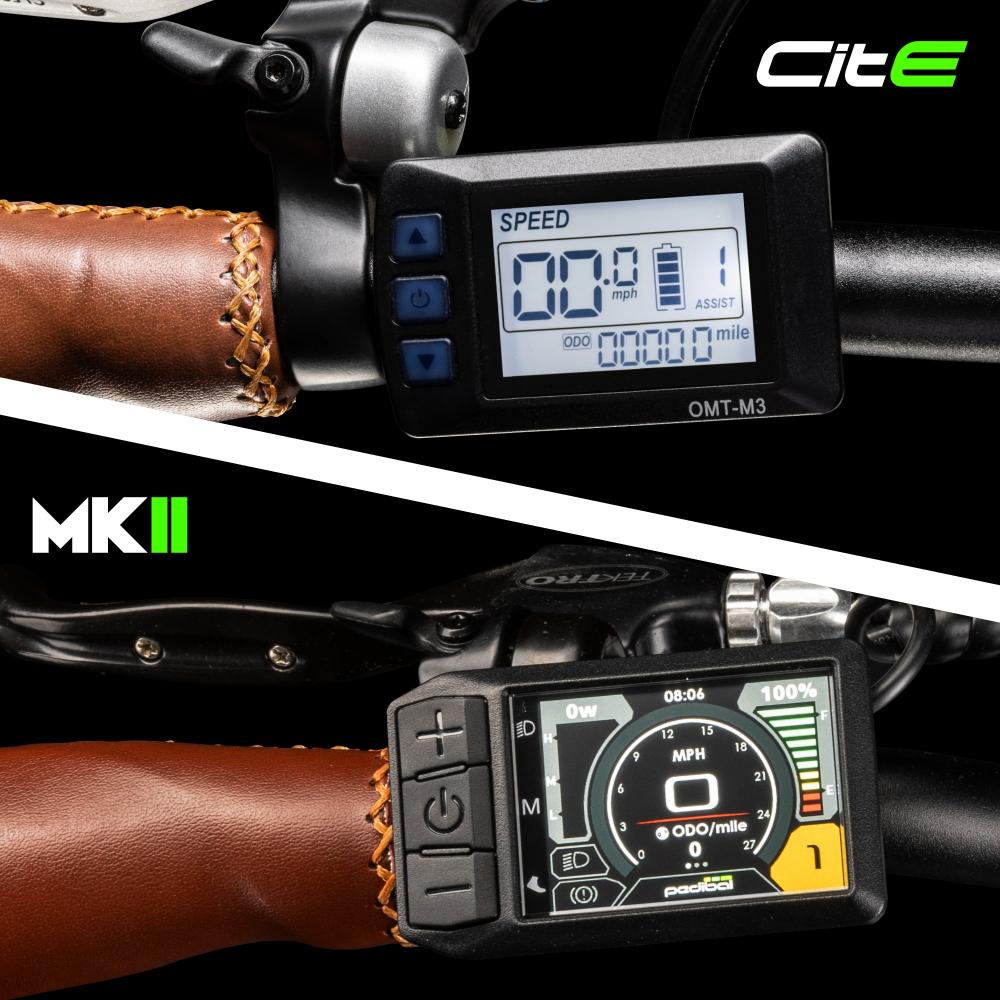

LED KTE Display
Integrated

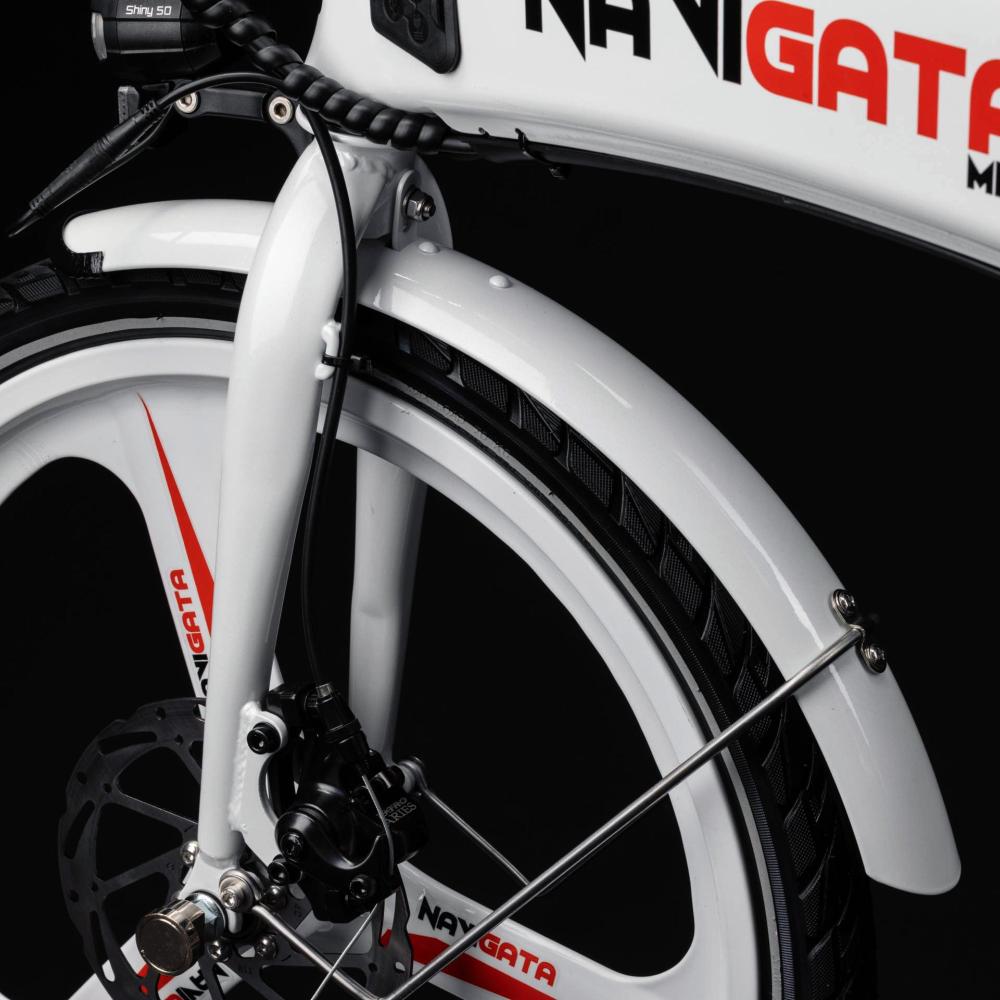

Tri-Spoke Magnesium 20” x 1.7” Kenzo Tyres
Tektro Front & Rear Promax Disc
Outer 7-speed Shimano Derailleur
KMC
Rigid

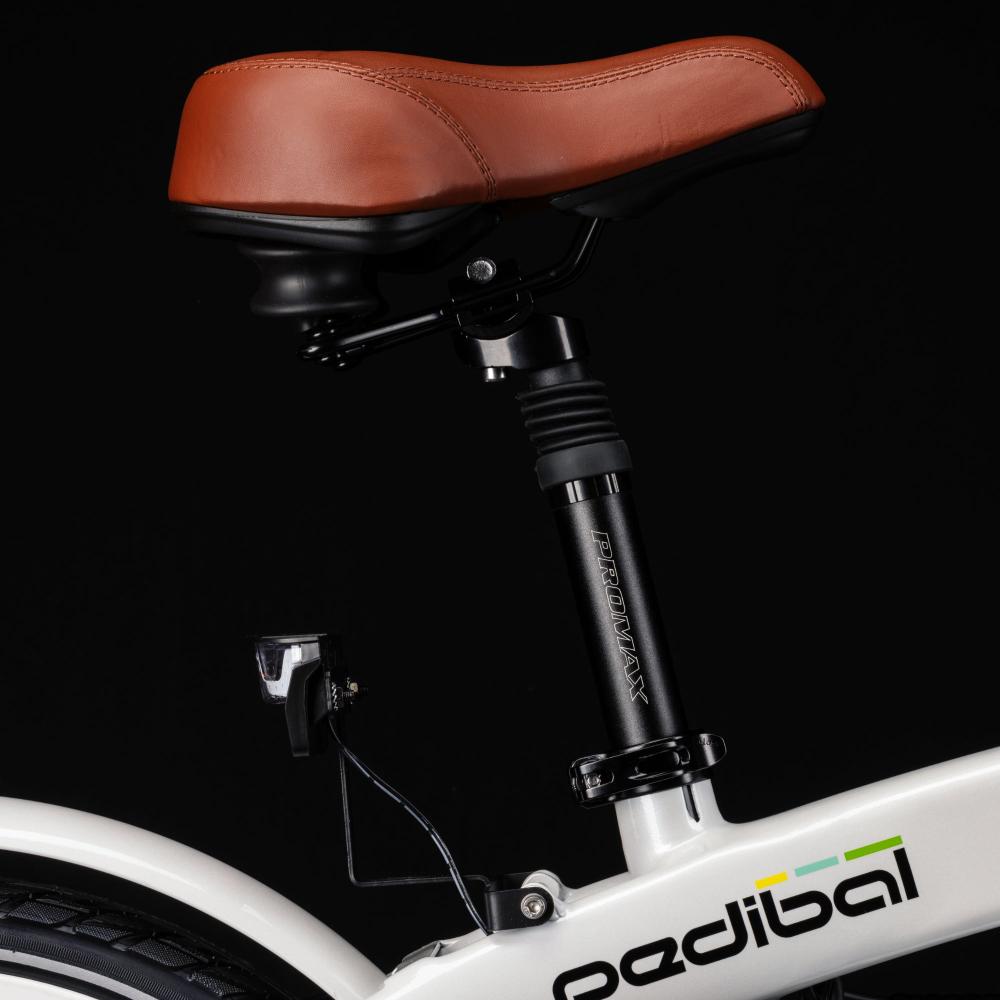

Faux Leather
1:1 Pedal Assist
19kg Maximum Load: 120kg
FAQ
Items ordered before 2 PM on a working day will be delivered by the next working day. Orders after 3 PM will be dispatched the following working day and will arrive 2 working days after the initial order date. The courier service will notify you of the delivery time upon providing contact information.

How do I charge the battery?
On our bicycle the battery can be charged on or off the bike simply by plugging the output lead of the charger into the socket of the battery case and then the power output plug into the household source (socket)
How long do I need to charge the battery for?
First charge should be 8-10 hrs and Normal charge times will range from 2- 8 hrs depending on charge status. If you do not use the vehicle for long periods of time, charge the battery at least once a month, to avoid reducing its lifespan.
How long does the battery last?
This depends on many factors such as weather conditions (wind) and terrain as well as the rider size and weight and how the bicycle is used but on average we would say on average 24 miles as ‘normal usage’ but this can be as much as 37miles / 41miles in optimum conditions the approximate life cycle of the Samsung / LG Lithium-Ion battery is 500 – 600 cycles (charge and discharge)
What is the weight limit to ride this bicycle?
For this cycle maximum load is 120 Kg
How and Where can I get my bicycle serviced?
We recommend little bit of maintenance regularly keeping things clean and lubricated especially if you’re using your bike frequently, however most reputable bicycle retailers offer a maintenance/service package that can range anywhere between £39-£99. For basic maintenance we suggest:
Tightening and correct operation of both wheels, frame and front forks.
Check Tire pressure and tread conditions.
Check Gearshift lubrication.
Check Bell and reflectors / lamps conditions and function.
Check Braking system operation.
Alternatively, you can visit us in our local shop – Unit 4 Maple Grove Business Centre, TW4 6DR
Will the USB charge my phone?
Yes the NAVIGATA has a USB function capable of charging mobile phones
Do you have to pedal an electric bicycle?
In most cases YES, electric bicycles have varying levels of pedal assist, however Pedibal NAVIGATA has DVSA certification to incorporate a unique ‘TWIST N GO’ thumb throttle to enable a consistent assistance for a prolonged period.
What is the maximum speed for an electric bicycle?
15.5 mph (UK)
Are there any Laws that are relevant to owning an Electric Bicycle?
The UK law regarding electric bikes is slightly different to EU laws, you can check the full UK laws if you want some more information. If a bike meets the EAPC requirements, it’s classed as a normal pedal bike meaning you can ride it on cycle paths and anywhere else pedal bikes are allowed. Key points to consider:
if you’re 14 or over you don’t need a licence to ride electric bikes that meet certain requirements, and they don’t need to be registered, taxed or insuredthe bike must have pedals that can be used to propel itthe electric motor shouldn’t be able to propel the bike when it’s travelling more than 15.5mphthe motor shouldn’t have a maximum power output of more than 250 watts
Laws can and do change without prior warning. These are accurate at the time of writing and we shall endeavour to keep them up to date.
Can I put my Pedibal on a regular car rack?
Yes, you can put an eBike on a regular car rack, but you should be aware of the weight of the rack as well as the weight of the bikes. Pedibal bikes weigh 19kg which may mean that you can only put 1 or 2 eBikes on a rack designed to take 2 or 3 regular bikes.
How heavy is my Pedibal?
The total bike weight is 19kg.
What’s the best part about Pedibal Bike?
This ebike break down barriers to riding. Most importantly, they are incredibly fun. The only one ebike in the UK with DVSA approved throttle.
Is the battery splash-proof?
The battery and LCD display are protected to the level IP65 (we class as splashproof) so ok to use in light wet weather is not designed to be used or stored for prolonged periods of time.
Can I lock the battery?
Yes, the battery is locked to the bike and you must use the key provided to remove it.
What if I lose my battery key?
We supply 2 keys that are unique to your Samsung battery and recommend that you obtain a third copy and keep this in a safe place as we are unable to obtain copies at Pedibal for safety and security reasons. The bike can still be charged and operated without key.
Are replacement batteries available?
Replacement batteries are available directly from your seller.
