Pedibal Navigata® Folding Electric Bike - LG 9.6Ah Long Range 19KG


Colour: Stealth Black
Pedal Assist: Pedal Assist (Next business day)
Sale price£999.99
Options Explained:
  1. Pedal Assist (throttle disabled) option provides power assistance up to 15.5 mph whilst pedalling,
  2. Throttle DVSA Certified option provides power without pedalling up to 15.5mph. plus pedal assist.

Pickup available at Unit 4 Maple Grove Business Centre

Usually ready in 24 hours

Pedibal Navigata® Folding Electric Bike - LG 9.6Ah Long Range 19KG

Pedibal Navigata® Folding Electric Bike - LG 9.6Ah Long Range 19KG

Stealth Black / Pedal Assist (Next business day)

Unit 4 Maple Grove Business Centre

Pickup available, usually ready in 24 hours

Unit 4 Maple Grove Business Centre
Lawrence Road
Hounslow TW4 6DR
United Kingdom


Foldable, Flexible.

Navigata packs away perfectly for transit or storage in tight city living spaces, boats, or motorhomes. The streamlined chassis and pioneering magnetic locking system make cleaning the Navigata fast and easy. Lightweight and stowable, no other ebike invented the quick and snappy magnetic system before us.

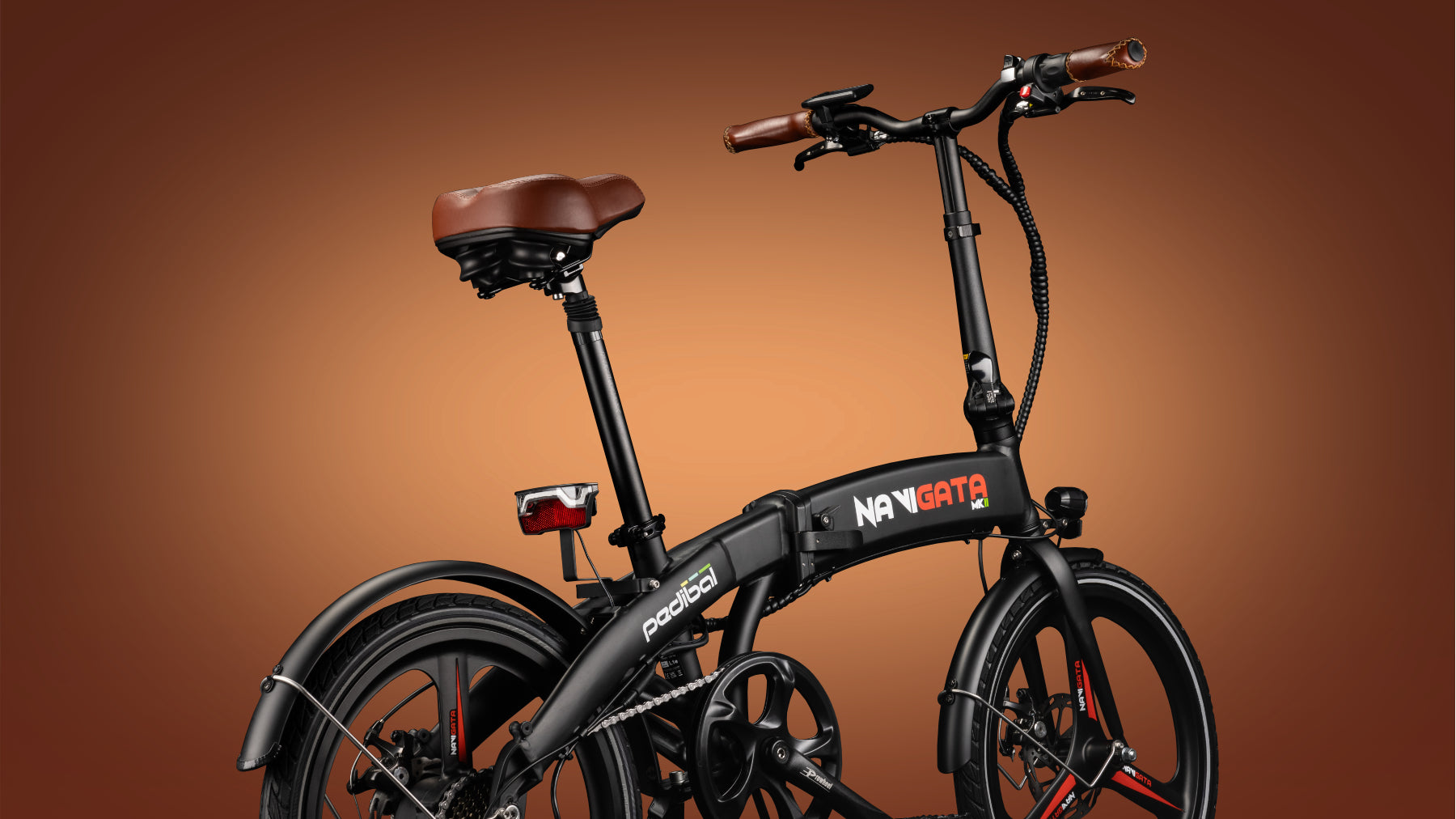

About the Navigata

DVSA-approved throttle, 9.6Ah LG battery for 15.5mph, JIABO 250W motor, 7-speed SHIMANO, 20" magnesium wheels, 19kg aluminum frame, TEKTRO brakes, USB port, quick-fold. Perfect for city commutes and leisure.


Aluminium Alloy


3 Point Folding Frame, Handlebar & Pedals with Hub to Hub Locking

Throttle & Pedal Assist

Options Available:

  1. Pedal Assist Only (provides power assistance up to 15.5 mph whilst pedalling)
  2. DVSA-Approved Instant Throttle Acceleration + Pedal Assist, designed to facilitate an effortless start to your journey.

Motor Assistance stops at 15.5 mph (25 km/h)


Removable LG 9.6 Ah 36 volt Li-ion Cell - Concealed in Frame


19kg. Maximum Load: 120kg


250W 36V brushless integrated rear wheel hub motor


Pedal Assist up to 41 miles (60 km)


Tektro Front & Rear Disc


Outer 7-speed Shimano Derailleur

Folded to Freedom in Seconds.

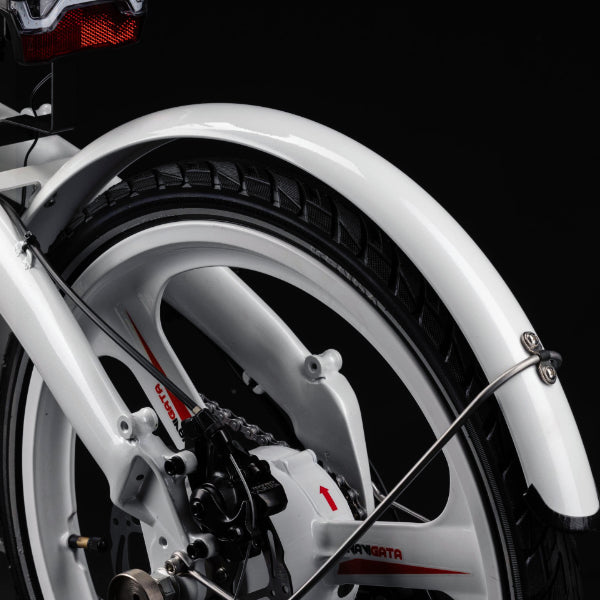

Wheels & Brake

Unibody Tri-Spoke 20" Magnesium Wheels. Front/Rear TEKTRO Mechanical Disc Brake.

Twist n Go

DVSA Approved Instant Throttle Acceleration Helps You to Kick Start the Journey with Ease.

Motor & Gear

High-Performance JIABO 30Nm 250W Motor. 7-speed SHIMANO Gear.


Swift Magnetic Hub to Hub Folding and locking.


9.6Ah 36V Hidden Removable Superior LG Battery.

What's in the Box

Electric Bike

2x Keys

UK Charger

LG Battery


The best-value folding electric bike to hit the streets. Fast and foldable, the new Navigata from Pedibal is a smart electric bike that takes the grind out of city cycling.

Martin Love

Pedibal Bikes’ Navigata Cite Folding e-bike is compact and functional travel solution, Arguably a folding e-bike for most applications.

Drew O’Neill

One of the top eco-friendly travel solutions, Pedibal Bikes’ Navigata Cite Folding e-bike is compact and functional, making it perfect for city living.

Sabrina Bugnath

If looks are just as important to vou as NAVIGATA CITE a bike's other attributes (and let's be honest, we all know a cyclist like that), then the eye-catching Pedibal Navigata CiTE could be the bike for you.
Joe Mulcahy's latest bike set to take cycle markets by storm.

Coreena Ford

The Navigata is a solid all-round option for commuting, and considering its price of £999, it offers excellent value compared with other options on the market.

Nick Harris-Fry


Aluminum Frame


LG Long Range Battery

Climb Hill with Ease

Power 250W Motor

Pedibal Navigata Cite proudly pairs Pedibal Navigata CitE high-speed brushless gear motor, capable of producing a max torque is 40Nm in conjunction with 36V proprietary cylinder lithium-ion battery offering extreme hill-climbing, acceleration, and towing capacity to power your daily adventure. And with speeds up to 15.5 mph, Pedibal Navigata CitE will add wider smiles to your miles.

Full Aluminium Frame

Pedibal Fold durable, 100% forged aluminium frame is a one-size-fits-most, with a maximum load capacity of 120kg. The Navigata unladen only weighs just 19 kg offering a lightweight, portable mode of transport.

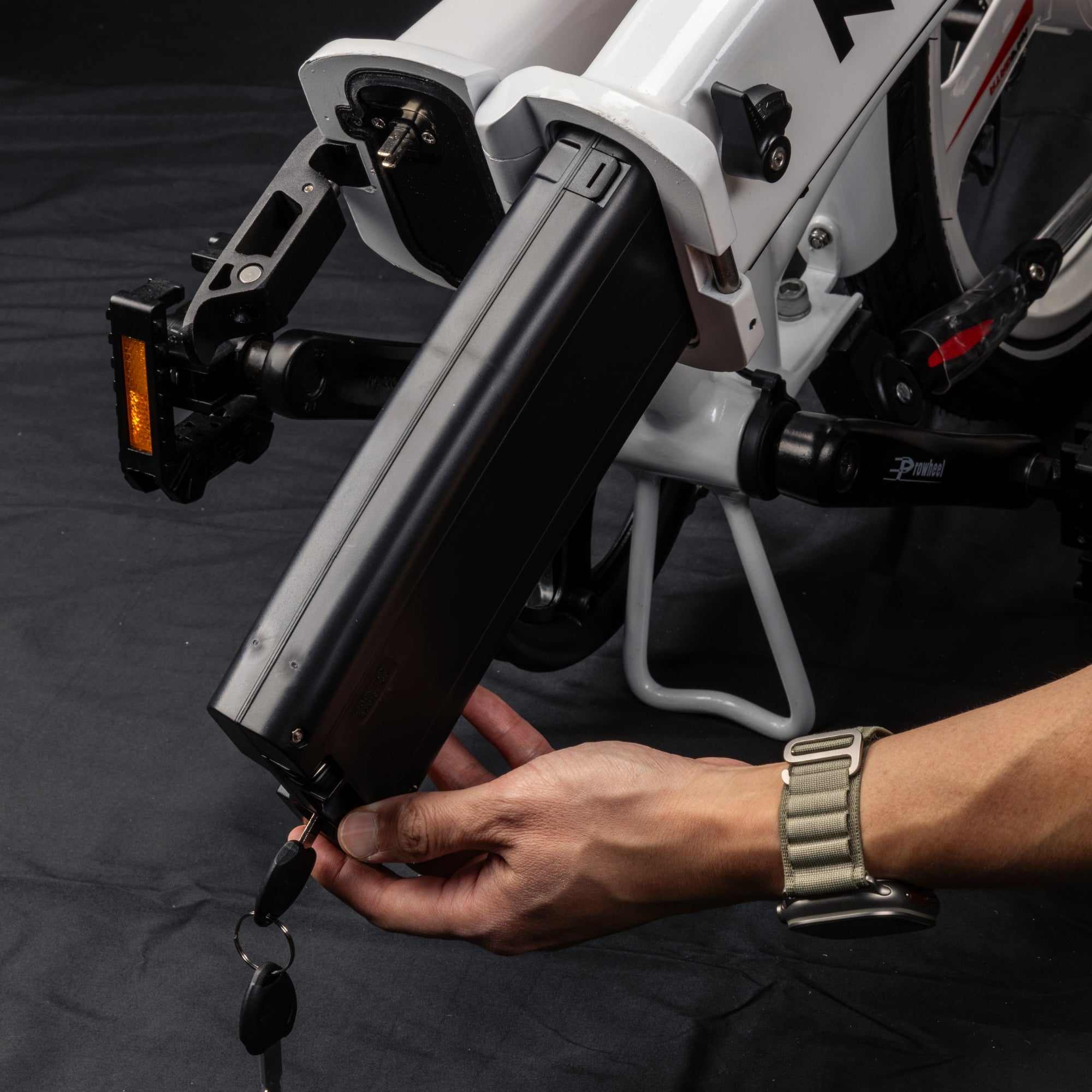

Removable LG 9.6Ah Battery

Unique to Pedibal, Navigata CitE offers an LG 36V 9.6 Ah lithium-ion battery that boasts LG cells, and the Pedibal Navigata CitE proprietary cylinder design. All making it ingeniously slender, lightweight, and a perfect fit for Pedibal Navigata CitE.

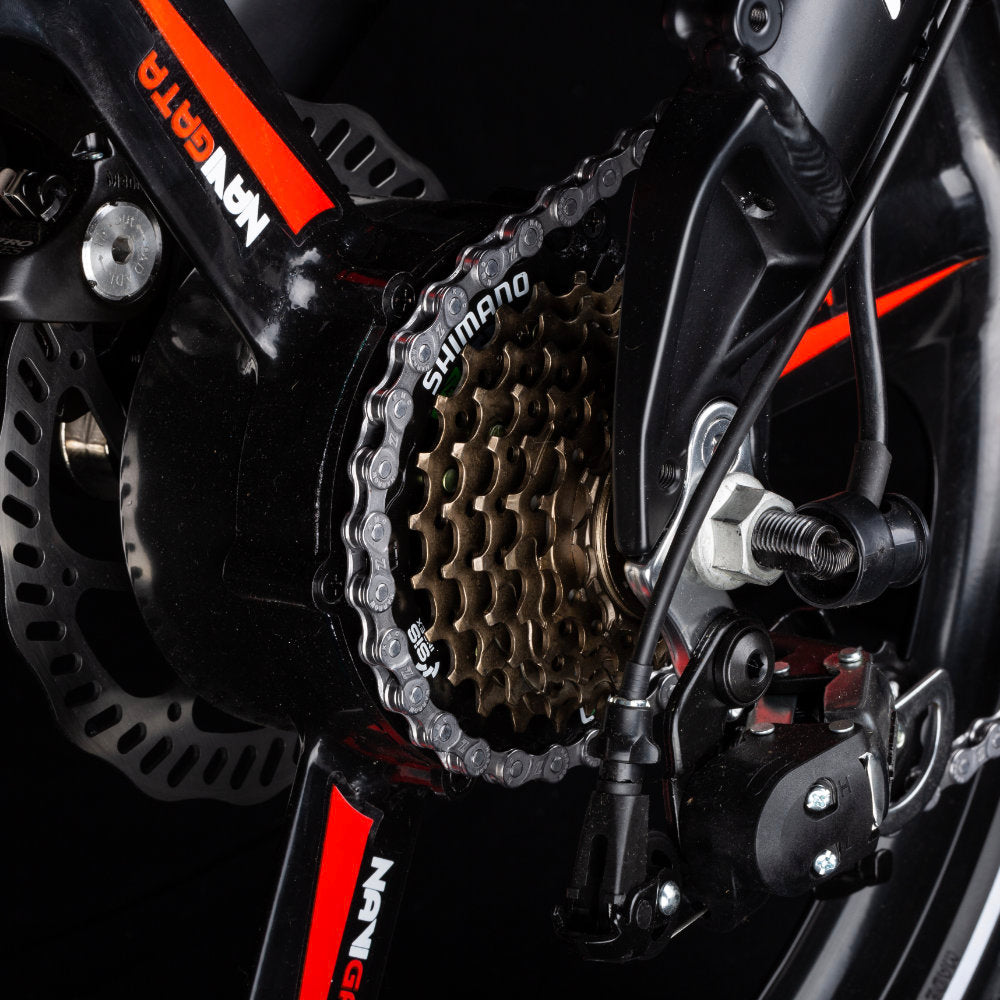

SHIMANO 7-Speed Shifter

Genuine Shimano® 7-Speed gear cassette with grip shifter. Along with 5 levels of electric pedal assist, this added feature gives Pedibal Navigata CitE an additional 7 manual gears for increased hill-climbing power, further range variation, and greater terrain adaptability. It’s like getting two Pedibal in one.

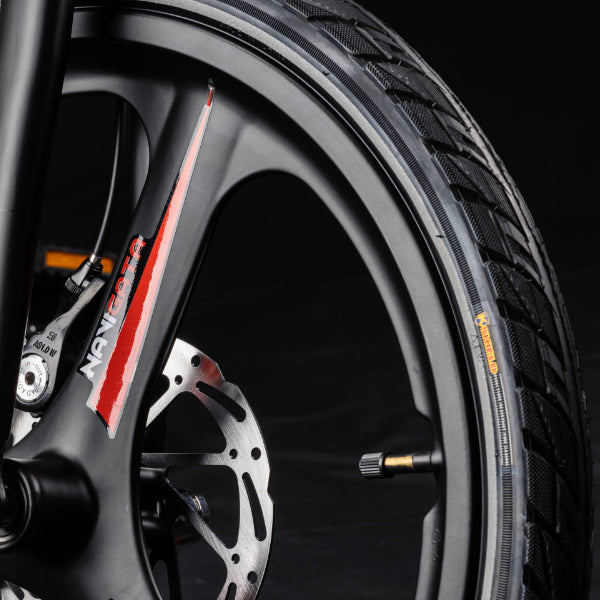

Durable Tyres

Pedibal Navigata CitE is a work of art - and its tyres are no exception. Measuring in at 20 x 1.75 inches, Navigata Cite tires keep it solid while enhancing overall appearance, flexibility and handling.

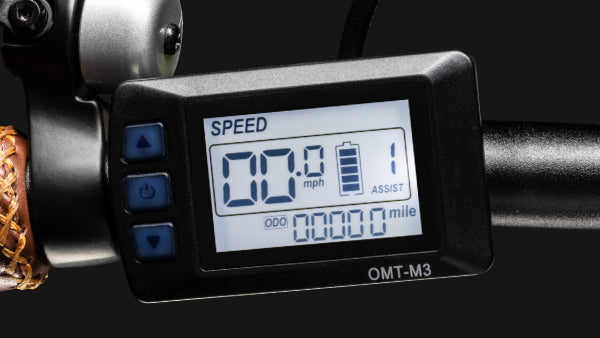

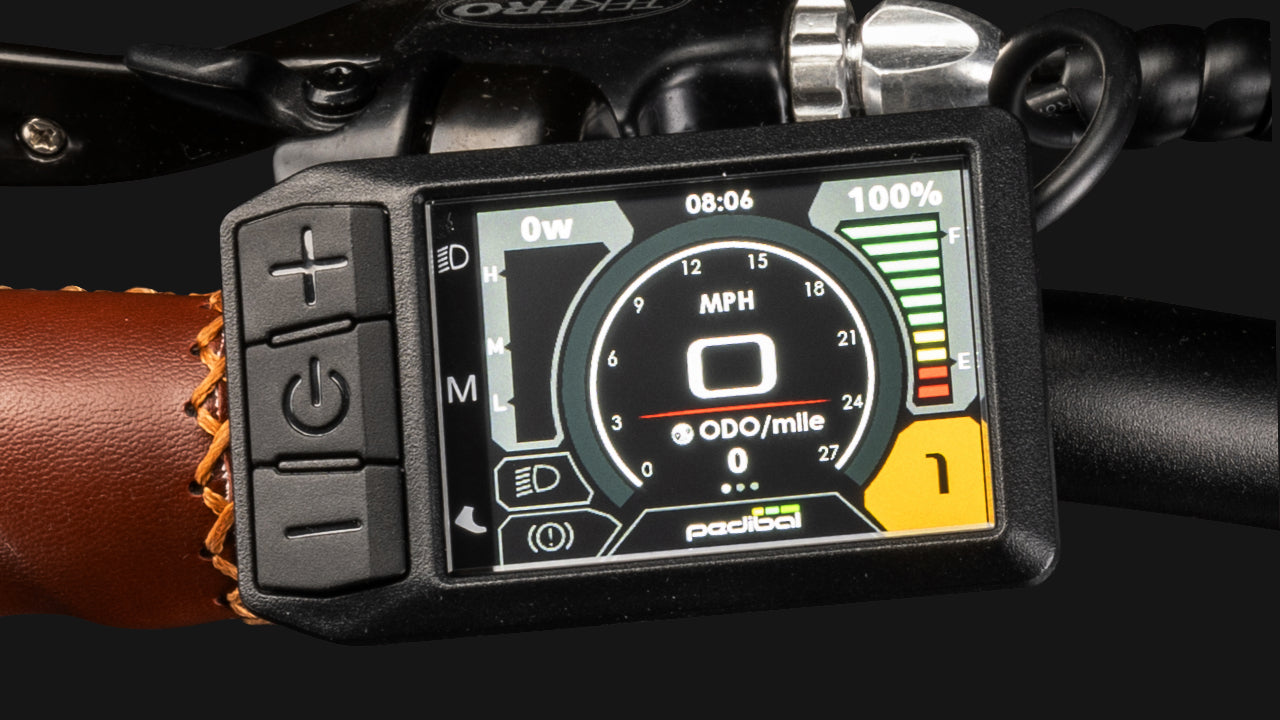

Multi-Function LCD Screen

Pedibal Navigata CitE includes an LCD screen - this feature supplies Navigata CitE with five levels of electric pedal assist for increased hill-climbing power, and greater range. In addition, the Navigata CitE LCD screen provides a digital display offering accurate battery level, speed, and distance travelled (splash protected to IP65)

Long Range

With the use of the included Navigata CitE LG 36V 9.6 Ah lithium-ion battery along with an electric pedal assist, many riders can experience a varied battery range of up to 20-41 miles*. When using straight electric power (without pedalling), the range can fluctuate up to 15.5 miles*.

*Range estimates are contingent upon rider and towing weight, riding style, wind speed and terrain.

TEKTRO Mechanical Brake

Front/Rear TEKTRO Mechanical Disc Brake coupled with Tektro Aires Calipers actuated with linear pull brake levers and Ø160mm rotor also incorporating safety electronic motor cut feature, enable ing a trustworthy safe and sure stopping performance.

Battery and Mobile Charging

The powerful crossbar enclosed secure key locked battery, is protected from the elements and can be charged in situ or removed simply for charging (4 hours) the battery also includes a hidden USB socket for accessory connection and mobile charging.

Product Dimensions

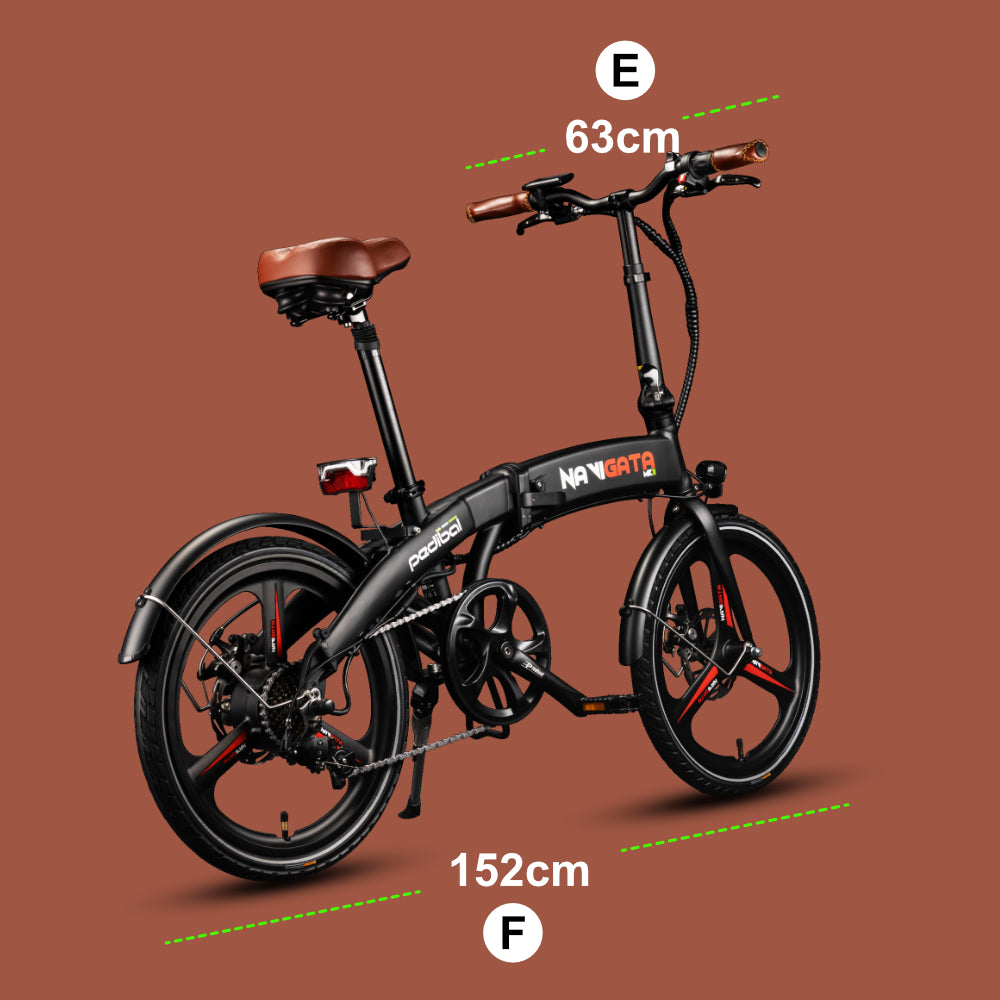

Ebike (assembled)

152cm x 63cm x 105cm

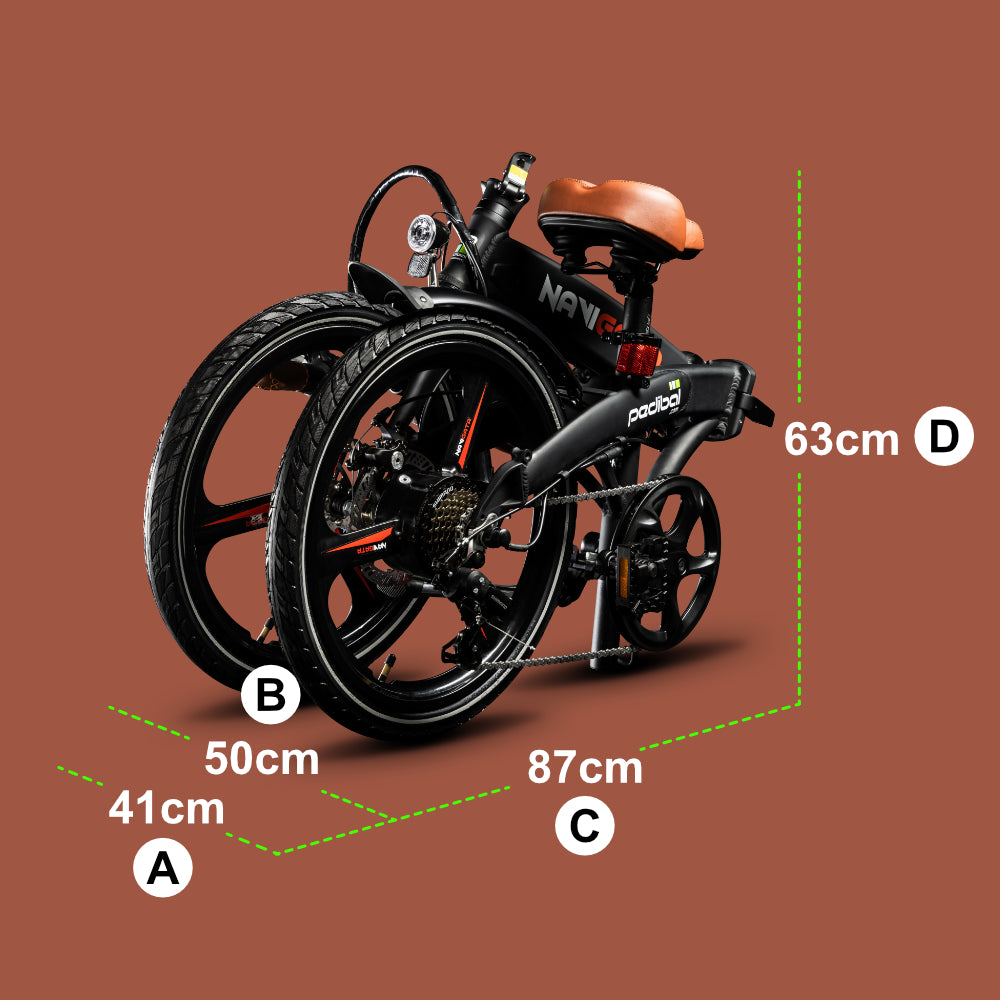

Ebike (folded)

86cm x 50cm x 63cm


Shipping Carton

90cm x 70cm x 40cm


Battery Weight

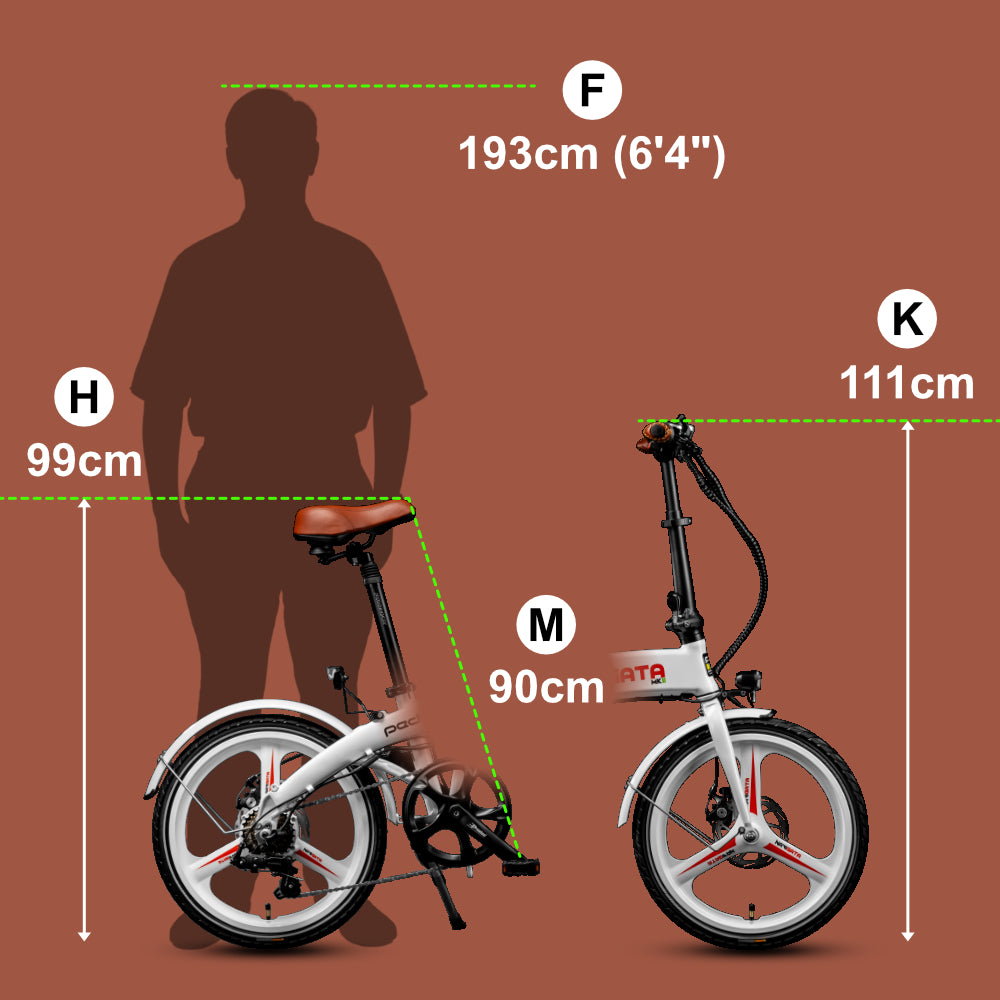

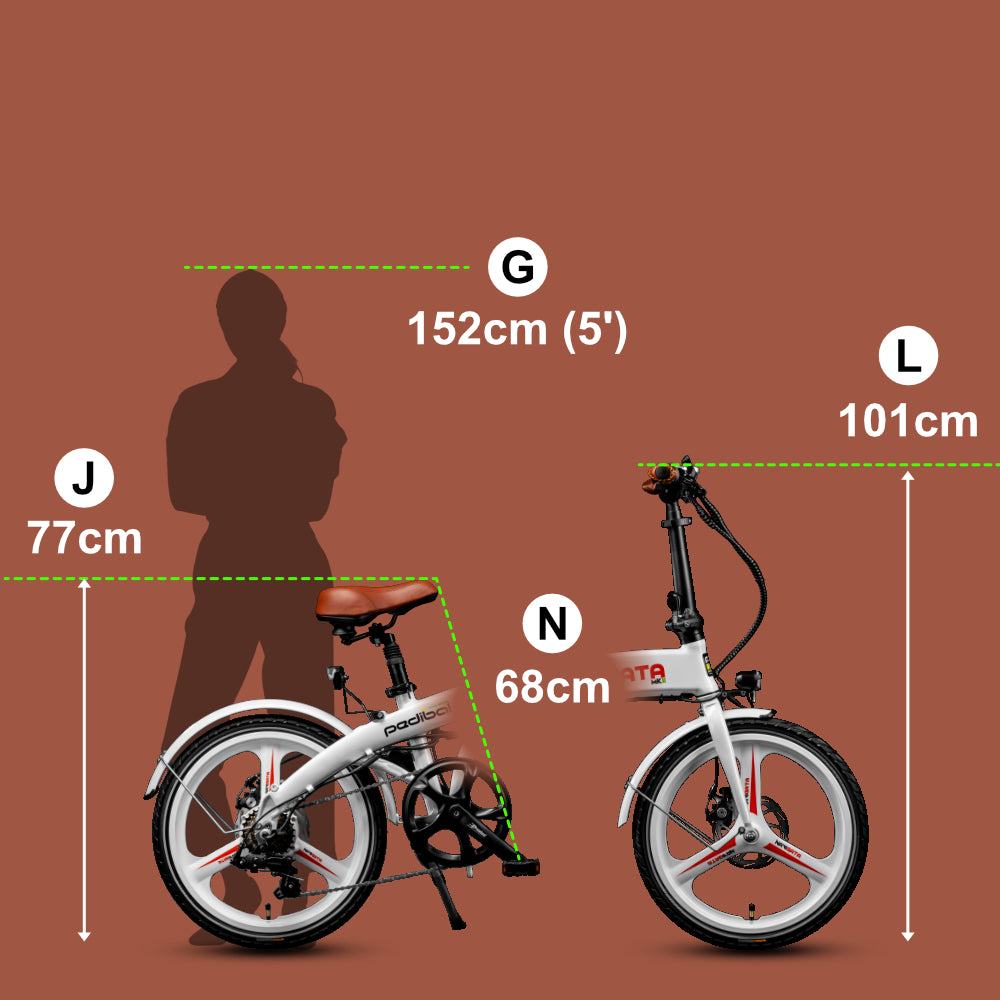

Seat measures from floor to top of the seat

77cm lowered to the bottom

99cm raised to the top

Frame height

51cm at seat stem

64cm at handlebar end

Handlebars height

101cm lowered to the bottom

111cm raised to the top

Next Day Delivery*

Fully Built Out of The Box

You can rest assured, each component of your new Pedibal is carefully wrapped in heavy-duty protective materials in our famous Pedibal ultra-thick, 7-layered "motorcycle-grade" box.

*Next day courier service booked Mon-Thu (order received after 2pm Thursday will be delivered Monday)
