Pedibal Navigata® Folding Electric Bike - Long Range Lightweight Compact
Options Explained:
- Pedal Assist (throttle disabled) option provides power assistance up to 15.5 mph whilst pedalling,
- Throttle DVSA Certified option provides power without pedalling up to 15.5 mph. plus pedal assist.
Below are our recommended rider height ranges (in cm and approximate ft/in). For taller riders on the Navigata MKII & Maxima, please contact us about an alternative seat post.
Navigata CitE:
• 152 cm (5′0″) to 193 cm (6′4″)
Navigata MKII:
• 155 cm (5′1″) to 180 cm (5′9″)
• Contact us if you’re taller for an alternative seat post
Maxima:
• 155 cm (5′1″) to 183 cm (6′0″)
• Contact us if you’re taller for an alternative seat post
E-Cruiza:
• 152 cm (5′0″) to 193 cm (6′4″) for cruising
• 152 cm (5′0″) to 180 cm (5′9″) for riding
Explora:
• 152 cm (5′0″) to 193 cm (6′4″)
Below are our recommended battery ranges (in miles), based on average London terrain with a 66 kg rider.*
Navigata:
• 9.6Ah: 25* – 41 miles
• 10.5Ah: 28* – 45 miles
Maxima:
• 20 Ah: 48* – 80 miles
E-Cruiza:
• 12.8 Ah: 31* – 51 miles
• 21 Ah: 50* – 84 miles
Explora:
• 15 Ah: 40* – 80 miles
*Ranges marked with “*” indicate estimates under typical city conditions. Actual results may vary. For more details or to use our range calculator, click here.
Pickup currently unavailable at Unit 4 Maple Grove Business Centre
Pedibal Navigata® Folding Electric Bike - Long Range Lightweight Compact
Navigata CitE 9.6Ah / Stealth Black / Pedal Assist (Next business day)
Unit 4 Maple Grove Business Centre
Unit 4 Maple Grove Business Centre
Lawrence Road
Hounslow TW4 6DR
United Kingdom
The best-value folding electric bike to hit the streets. Fast and foldable, the new Navigata from Pedibal is a smart electric bike that takes the grind out of city cycling.
Pedibal Bikes’ Navigata Cite Folding e-bike is compact and functional travel solution, Arguably a folding e-bike for most applications.
One of the top eco-friendly travel solutions, Pedibal Bikes’ Navigata Cite Folding e-bike is compact and functional, making it perfect for city living.
If looks are just as important to vou as NAVIGATA CITE a bike's other attributes (and let's be honest, we all know a cyclist like that), then the eye-catching Pedibal Navigata CiTE could be the bike for you.
Joe Mulcahy's latest bike set to take cycle markets by storm.
The Navigata is a solid all-round option for commuting, and considering its price of £999, it offers excellent value compared with other options on the market.
Unfold, Go.
About Navigata
The Navigata is the ultimate portable bike for any journey. Ideal for novices, commuters, or leisure riders, it’s also perfect for motorhomes, camper vans, and boat trips. With 5 pedal assist levels and a DVSA-approved throttle, you’ll have complete control.

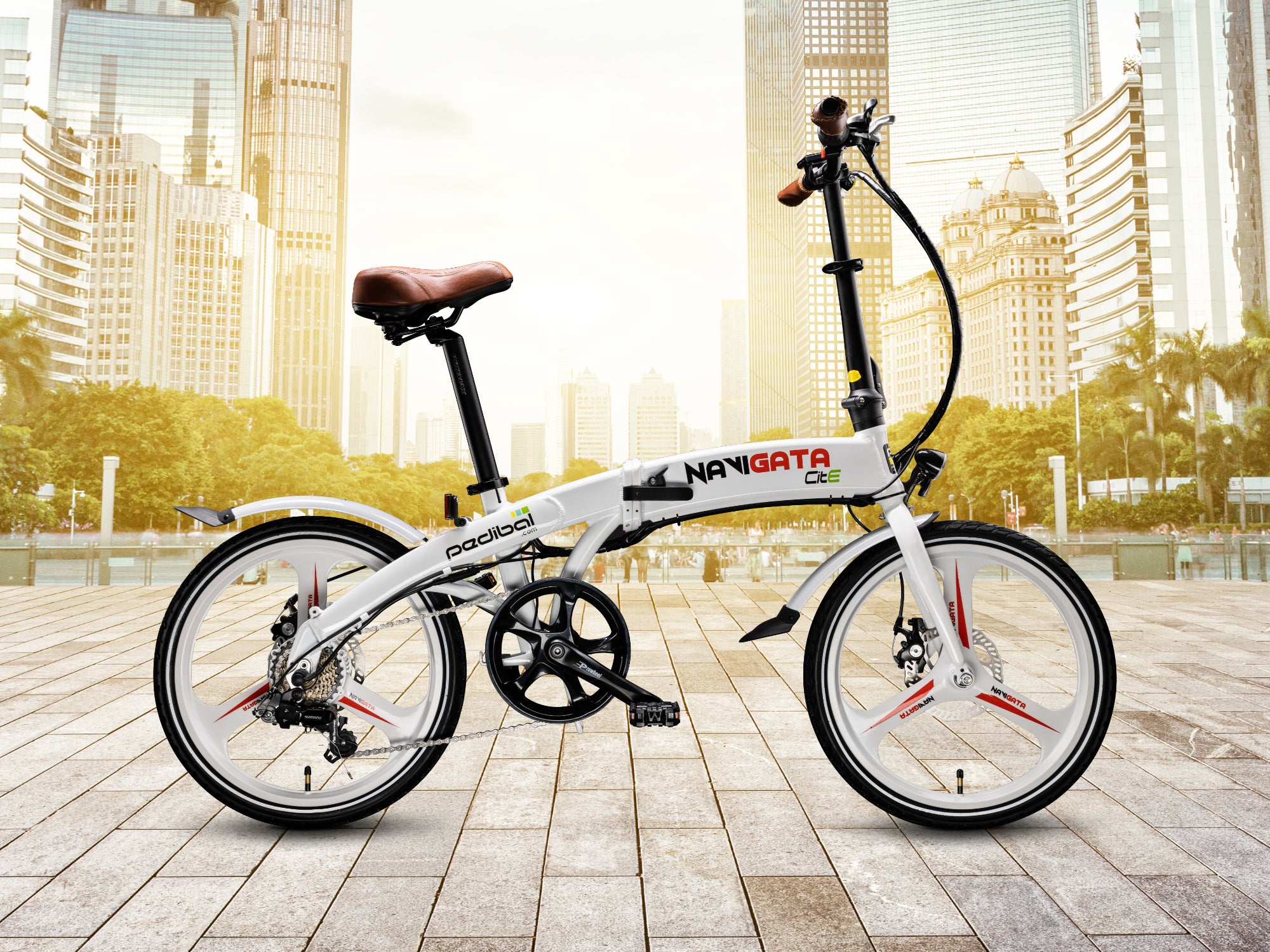

Navigata CitE
Navigata MKII
Aluminium Alloy
Aluminium Alloy with Streamlined Full Body Flat Welding
LED Mono Colour Display
Full Colour Smart Display with Enhanced Functions
Integrated Front Light
Integrated Front & Rear Light with Brake Light Function
Quarter Front & Rear Mudguards
Full Size Front & Rear Aluminium Mudguards
Faux Leather
Faux Leather with Integrated Seat Suspension
19kg (Max Load: 120kg)
20kg-21kg depend on spec (Max Load: 140kg)
Tri-Spoke Magnesium 20” x 1.75 Kenda Tyre
Tri-Spoke Magnesium 20” x 1.75 Kenda Tyres (Puncture Resistant)
Cadence 12 Magnetic System
Cadence Unibody 12 Magnetic System
3 Point Folding Frame, Handlebar & Pedals with Hub to Hub Lockin
3 Point Folding Frame, Handlebar & Pedals with Hub to Hub Locking
- Pedal Assist up to 15.5mph
- Pedal Assist up to 15.5mph with DVSA Approved throttle boost up to 15.5 mph
- Pedal Assist up to 15.5mph with instant throttle boost up to 3.8 mph
- Pedal Assist up to 15.5mph with DVSA Approved throttle boost up to 15.5 mph
15.5 mph (25 km/h)
15.5 mph (25 km/h)
LG 36V 9.6Ah (345.6Wh): 25 miles (Tested, London terrain, 66kg rider) | 41 miles (Max)
LG 36V 9.6Ah (345.6Wh): 25 miles (Tested, London terrain, 66kg rider) | 41 miles (Max)
250W 36V brushless integrated rear wheel hub motor
250W 36V brushless integrated rear wheel hub motor
Tektro Front & Rear Disc Brakes
Tektro Front & Rear Disc Brakes
7-speed Shimano Derailleur
7-speed Shimano Derailleur
5-6 Hours, USB AC 100-240V, 2A Smart Charger
5-6 Hours, USB AC 100-240V, 2A Smart Charger
KMC Rustless
KMC Rustless
Dimension
Folded Size
- A: Folded Width (handlebar removed): 41 cm
- B: Folded Width: 50 cm
- C: Folded Length: 87 cm
- D: Folded Height: 63 cm
Unfolded Size
- E: Handlebar Width: 63 cm
- F: Unfolded Length: 152 cm
Max Rider Height
- F: Maximum Rider Height: 193 cm
- H: Maximum Saddle Height: 99 cm
- K: Maximum Handlebar Height: 111 cm
- M: Maximum Pedal Distance: 90 cm
Min Rider Height
- G: Minimum Rider Height: 152 cm
- J: Minimum Saddle Height: 77 cm
- L: Minimum Handlebar Height: 101 cm
- N: Minimum Pedal Distance: 68 cm
DVSA Legally Certified Twist and Go.
Learn MoreNavigata CitE & Navigata MKII

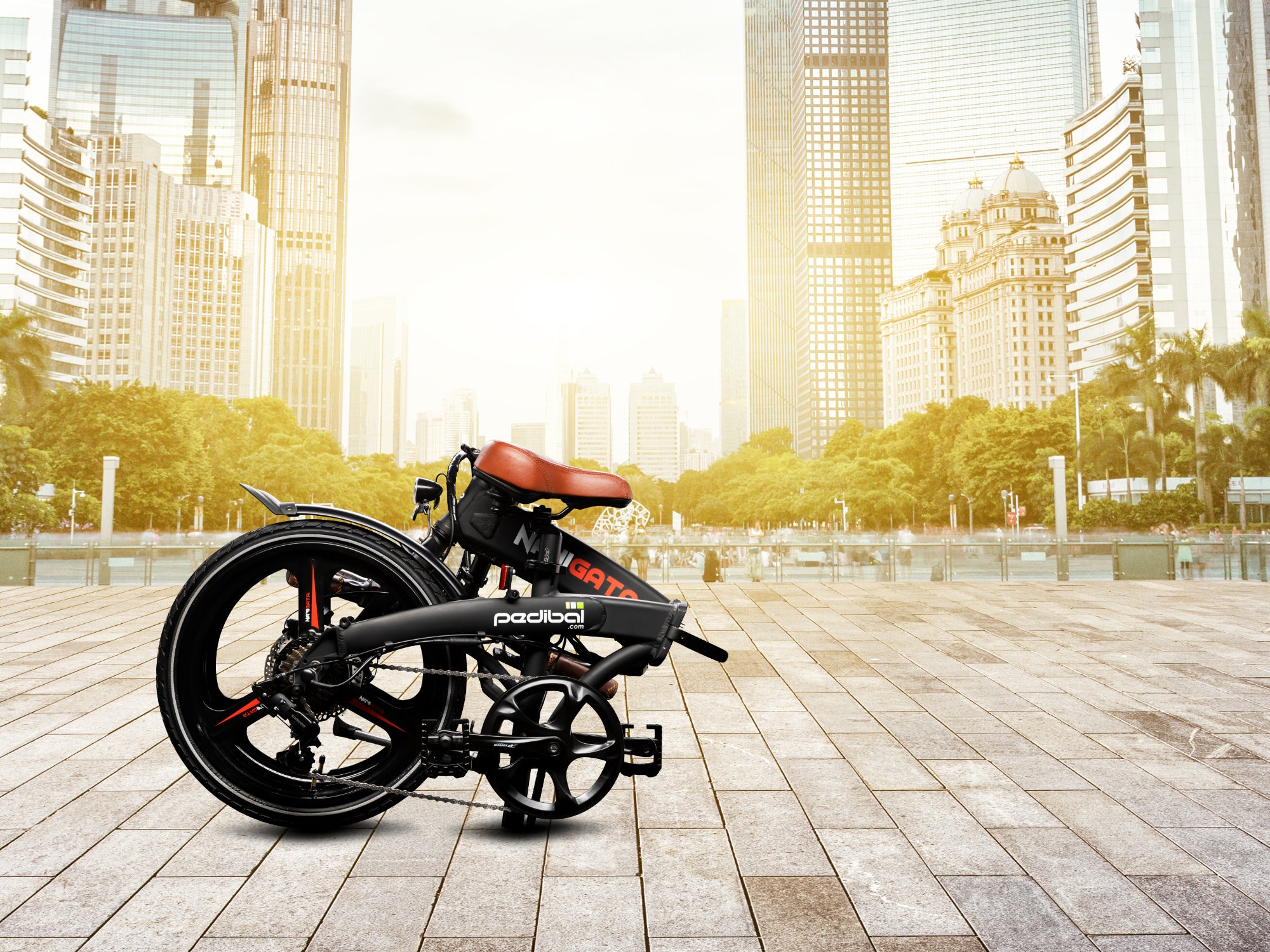

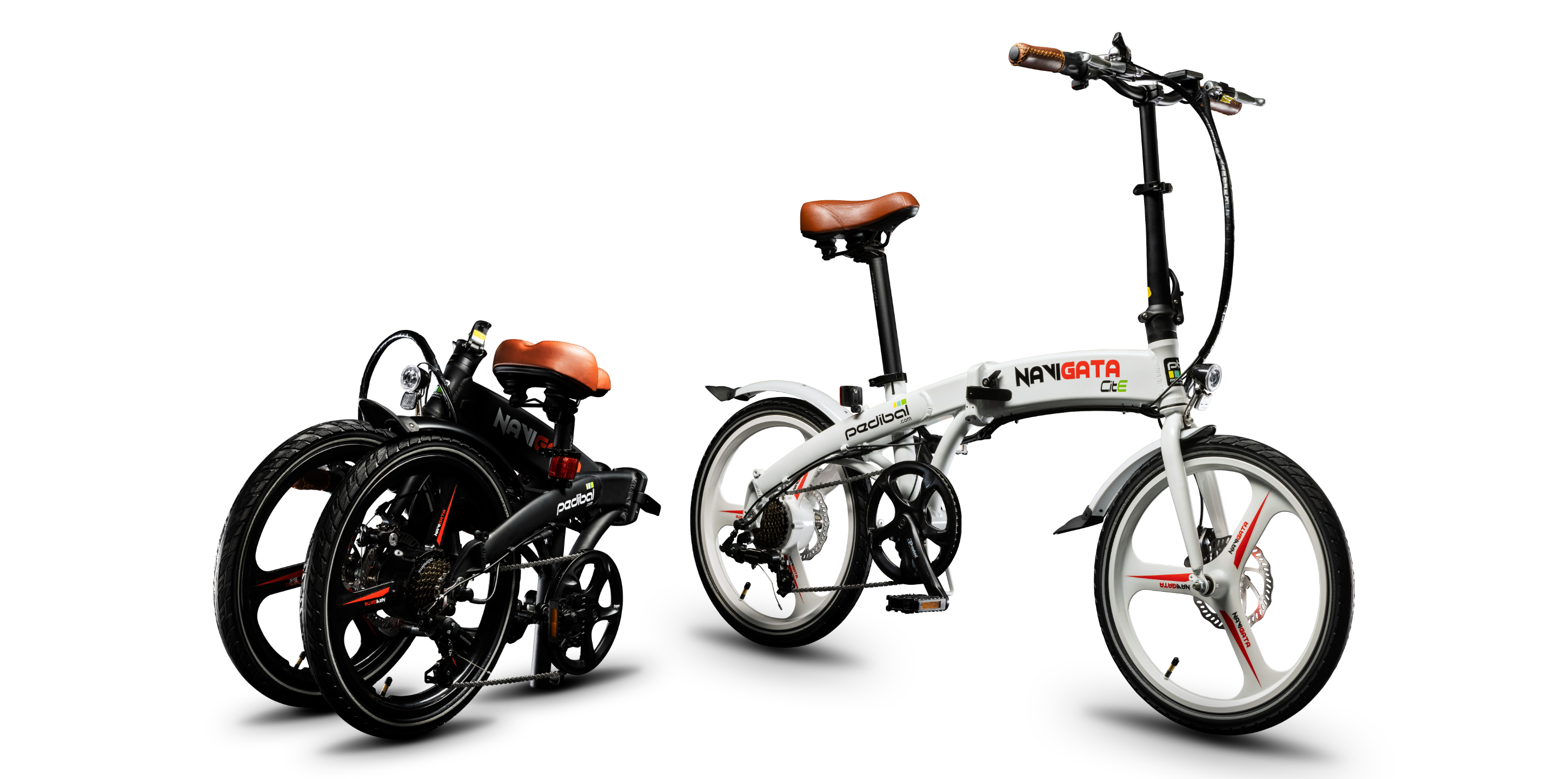

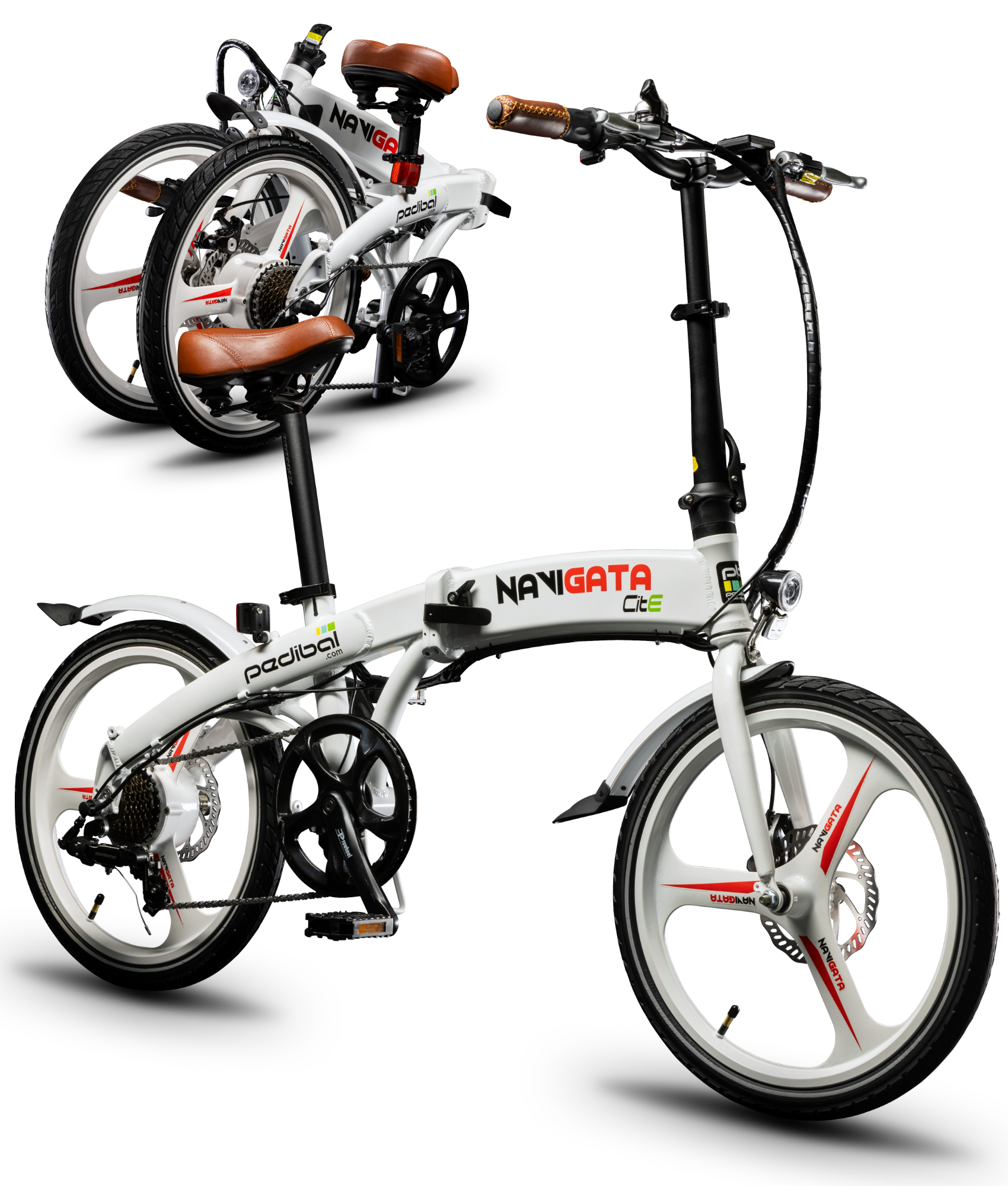

Magnetic Folding for Tight Spaces
Built for tight spaces like city apartments, boats, or motorhomes. With a streamlined chassis and magnetic locking system, they’re lightweight, easy to clean, and offer fast, efficient storage.
Lightweight for Easy Portability
Full aluminum frame supports up to 120kg, offering strength, lightweight design, and corrosion resistance. At just 19kg, it’s easy to carry on public transport, lift into a car boot, or fit into a caravan—perfect for commuting and road trips.
Torque Power for Hill Climbing
High-speed brushless motor with 40Nm torque effortlessly tackles 17.5% gradient hills. Paired with a long-range LG battery, it ensures smooth, high-performance rides at the UK legal limit of 15.5 mph.
The Pedibal Navigata CitE & MKII features a removable genuine LG 36V 9.6Ah battery, offering up to 40 miles of range in a sleek, lightweight, and fully waterproof design, concealed within the frame. Securely locked with a key and equipped with a USB port for mobile charging, it delivers both power and convenience for hassle-free rides.
Front and rear TEKTRO mechanical disc brakes, combined with linear pull levers and a motor cut-off, deliver powerful, reliable stopping performance in all conditions, ensuring enhanced control and peace of mind.
The genuine Shimano 7-Speed shifter on the Pedibal Navigata CitE & MKII makes it easier to tackle steep hills and ride on different types of terrain. Paired with 5 levels of electric pedal assist, it gives you more control and a smoother ride, helping you handle any journey with less effort.
NAVIGATA MKII
What's New with Navigata MKII
Full Size Mudguard
The MKII features full-size front and rear aluminum mudguards, offering superior protection from mud and water, keeping your trousers, jacket, and shoes cleaner for a more comfortable ride, while enhancing the bike’s sleek, modern look.
Colour Control V2
The MKII boasts a sleek, intuitive home screen that offers a comprehensive overview of your bike’s stats, along with extensive customization options for battery performance, ride settings, and appearance—tailoring your ride to perfection.
Brake Light
The MKII features integrated front and rear lights with a responsive brake light, improving visibility, enhancing safety, and offering a seamless, modern design for a safer, hassle-free ride.
Seat Suspension
The MKII features integrated front and rear lights, along with a responsive brake light, improving visibility and safety, especially during night rides, while maintaining a sleek, modern design for a hassle-free experience.
Enhanced Tyre
The MKII uses even stronger anti-puncture tyres, allowing extra loads and ensuring durability for tough road conditions, offering enhanced reliability and long-lasting performance.
Navigata MKII Upgrades in Detail
The Navigata MKII enhances everything you loved about the CitE. With a new Colour Control V2, integrated seat suspension, stronger anti-puncture tyres, integrated brake lights, full-length mudguards, a sleek flat-welded frame, and an integrated cadence system, it delivers a safer, more comfortable, and stylish ride for an unbeatable experience.
Seat Suspension
The MKII’s integrated seat suspension absorbs UK road bumps for a smoother, more comfortable ride while staying lightweight and agile.
Integrated Brake Light
The MKII’s integrated front and rear lights, plus a responsive brake light function, boost visibility and safety, especially at night.
140 Kg+ Load
The MKII’s stronger anti-puncture tyres support heavier loads and ensure durability for tough roads, offering reliable, long-lasting performance.
Full Size Mudguard
The MKII’s full-size aluminium mudguards provide superior protection from mud and water, keeping your clothes cleaner and enhancing the bike’s sleek, modern look.
Integrated Cadence
The MKII’s upgraded cadence system is compact and internal, preventing misalignment and reducing power drops for a smoother, more reliable ride.
Seamless Welding
The MKII’s flat-welded frame delivers a seamless, strong, and sleek design with reduced visible weld lines for a clean, modern look.
Pedibal Control
The MKII boasts a sleek, intuitive home screen that offers a comprehensive overview of your bike’s stats, along with extensive customization options for battery performance, ride settings, and appearance—tailoring your ride to perfection.
Navigata CitE
Navigata MKII
What's in the Box
Real-world Range Testing
Many Pedibal Navigata customers have effortlessly folded their bikes and tucked them into car boots or vans, ready for adventure. Whether it’s a weekend escape to the countryside or a spontaneous road trip along the coast, the Navigata fits perfectly in the back, leaving room for other essentials.
We’ve partnered with numerous motor home companies, and many of our customers have found the Pedibal Navigata to be the perfect travel companion. Its compact, foldable design fits effortlessly into the limited storage space inside a caravan, making it ideal for those who love to explore. Whether tucked into a corner or neatly stored under a seat, the Navigata is always ready for adventure.
Some of our customers have put the Pedibal Navigata to the test in high-end, fast-paced environments like aeroplane hangars and F1 racetracks. Whether zipping between aircraft inside the expansive hangar or covering distances across a sprawling racetrack, the Navigata proves its versatility.
Many of our customers have effortlessly fitted the Pedibal Navigata onto bike racks at the back or top of their cars and vans. Thanks to its lightweight design, the Navigata easily works with most publicly available bike rack solutions, making it a breeze to transport.
Many of our customers have found creative ways to travel with their pets using the Pedibal Navigata. By attaching pet bike baskets or dog carriers, they’ve been able to fit their furry companions securely onto the bike. Whether exploring the UK countryside or taking long rides through city streets, these carriers provide a safe, comfortable solution for pets.
Many of our customers take their Pedibal Navigata bikes on international adventures, from the scenic roads of France and Spain to more exotic destinations, as well as exploring every corner of the UK. Whether riding through cobbled streets, rugged trails, or smooth coastal paths, the Navigata handles diverse terrains with ease.
Some of our adventurous customers take their Pedibal Navigata bikes onboard their boats, exploring new destinations via seas and rivers. The lightweight design and foldable frame make it easy to load onto the deck, allowing for seamless transitions from water to land. Whether docking at a riverside village or cruising along the coast, the Navigata offers the perfect means of exploring new areas, making every journey more versatile and exciting.
Many Pedibal Navigata customers have effortlessly folded their bikes and tucked them into car boots or vans, ready for adventure. Whether it’s a weekend escape to the countryside or a spontaneous road trip along the coast, the Navigata fits perfectly in the back, leaving room for other essentials.
We’ve partnered with numerous motor home companies, and many of our customers have found the Pedibal Navigata to be the perfect travel companion. Its compact, foldable design fits effortlessly into the limited storage space inside a caravan, making it ideal for those who love to explore. Whether tucked into a corner or neatly stored under a seat, the Navigata is always ready for adventure.
Some of our customers have put the Pedibal Navigata to the test in high-end, fast-paced environments like aeroplane hangars and F1 racetracks. Whether zipping between aircraft inside the expansive hangar or covering distances across a sprawling racetrack, the Navigata proves its versatility.
Many of our customers have effortlessly fitted the Pedibal Navigata onto bike racks at the back or top of their cars and vans. Thanks to its lightweight design, the Navigata easily works with most publicly available bike rack solutions, making it a breeze to transport.
Many of our customers have found creative ways to travel with their pets using the Pedibal Navigata. By attaching pet bike baskets or dog carriers, they’ve been able to fit their furry companions securely onto the bike. Whether exploring the UK countryside or taking long rides through city streets, these carriers provide a safe, comfortable solution for pets.
Many of our customers take their Pedibal Navigata bikes on international adventures, from the scenic roads of France and Spain to more exotic destinations, as well as exploring every corner of the UK. Whether riding through cobbled streets, rugged trails, or smooth coastal paths, the Navigata handles diverse terrains with ease.
Some of our adventurous customers take their Pedibal Navigata bikes onboard their boats, exploring new destinations via seas and rivers. The lightweight design and foldable frame make it easy to load onto the deck, allowing for seamless transitions from water to land. Whether docking at a riverside village or cruising along the coast, the Navigata offers the perfect means of exploring new areas, making every journey more versatile and exciting.
Next Day Delivery*
Fully Built Out of The Box
You can rest assured, each component of your new Pedibal is carefully wrapped in heavy-duty protective materials in our famous Pedibal ultra-thick, 7-layered "motorcycle-grade" box.
*Next day courier service booked Mon-Thu (order received after 2pm Thursday will be delivered Monday)
Should you opt for the Certified Throttle DVSA option, please allow 2-5 weeks for testing. Upon the completion of testing, your certified bike will be dispatched to you immediately.
30 Days Free Insurance
Get insured against theft and damage with easy cancellation, no extra fees, and up to £200 for post-incident travel
4.9 Trustpilot Rating
Our customers have left us hundreds of 5-star reviews, and the quality of our product services truly speaks for itself.
5 Cycle to Work Schemes
Partnering with leading 'cycle to work' schemes like Cyclescheme, Green Commute Incentive, and others, we make your purchase more affordable
